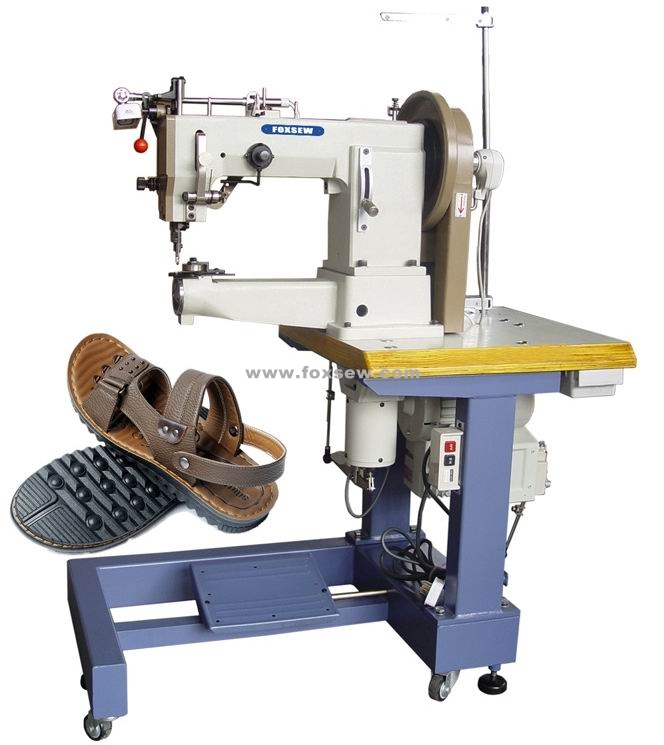

Cylinder Bed Shoes Sole Border Stitching Machine

Product Name: Cylinder Bed Shoes Sole Border Stitching Machine
Model NO.: FX-205S
Origin: Zhejiang,China
Packing: Wooden Case
Brand Name: FOXSEW

Product Details: Cylinder Bed Shoes Sole Border Stitching Machine

FOXSEW Heavy Duty Cylinder Bed Compound feed sewing machine for Heavy Leather and Upholstery Fabrics
Cylinder Bed Leather Sewing Machine for Saddle and Harness
Upholstery Sewing Machine for Leather Sofas with extra Thick Thread
Cylinder Bed Heavy duty Sewing Machine for Golf Gags, Filters and Upholstery

Working Video 1: www.foxsew.com/company-video/cylinder-bed-extra-heavy-duty-walking-foot-upholstery-sewing-machine-for-leather-and-lifting-webbing-345.html

Working Video 2: www.foxsew.com/company-video/sole-stitching-machine-foxsew-571.html

Working Video 3: www.foxsew.com/company-video/long-arm-cylinder-bed-walking-foot-leather-upholstery-sewing-machine-549.html

Working Video 4: www.foxsew.com/company-video/cylinder-bed-leather-sewing-machine-233.html

Working Video 5: www.foxsew.com/company-video/cylinder-bed-leather-sewing-machine-for-saddle-and-harness-302.html

Working Video 6: www.foxsew.com/company-video/heavy-duty-cylinder-arm-walking-foot-sewing-machine-for-stitching-heavy-leather-upholstery-fabrics-and-webbings-374.html

Working Video 7: www.foxsew.com/company-video/cylinder-bed-heavy-duty-sole-stitching-machine-726.html

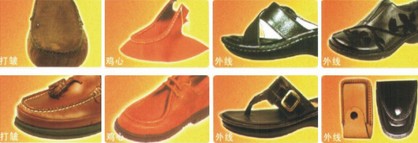

Applications: Leather Sofas, Leather Shoes, Saddles, Safety Harness, Filters, Footwear, Car Upholstery, Marine Upholstery, Furniture Upholstery,Polyester Lifting Slings, Safety Belts, Military Belts, Golf Bags, Softball Bags, Backpacks, Cargo Straps, Filters, Industrial Bags, Industrial Safety Products, Tire Covers and Chairs Border etc.

Features: At the base of up-down Synchronized feeding material , we develop the up feeding materials single system which is distinguished from the down feeding materials , to make feeding materials desynchronized, as the specialized equipment of flap cover, it adds the versatility and practicality in sewing heavy materials.

The lift of presser foot is up to 20MM, suitable for sewing the extra heavy-weight materials, movement of presser foot can be infinitely. Sewing area can be 320mm, suitable for large, high and cylinder products.

Large barrel shuttle reduces the times of thread changes and raises sewing efficiency. Suitable for stitching handles, tool bag, safety belt, leather belt, tent, cushion, bags, shoes etc including one set of presser, instead of the imported sole out seam stitch, This machine is stable performance, easy to use, multi-functional.

Specifications:

Model	FX-205S
Max. Sewing Speed	800 r.p.m
Stitch Length	0-11 mm
Needle Bar Stroke	56 mm
Thread Take-up Lever Stroke	92 mm
Presser Foot Lift	By hand: 15mm, By Knee: 20 mm
Needle Type	DYX3 21#-28#
Motor	750W Servo Motor
