- Product Name: Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Single Needle )
- Model NO.: FX-867
- Origin: Zhejiang,China
- Packing: Cartons
- Brand Name: FOXSEW
-

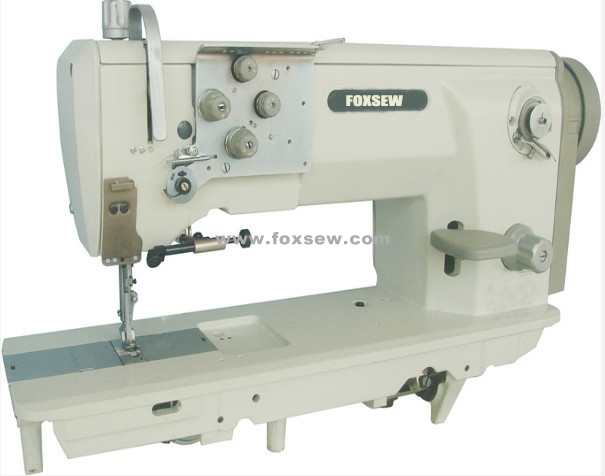

Product Details: Durkopp Adler Type Heavy Duty Lockstitch Sewing Machine ( Single Needle )
Features: This series is the latest product of FOXSEW brand heavy duty lockstitch sewing machines. It is designed with the large vertical rotary hook, synchronous toothed belt drive. The needle bar, feed dog and presser foot synchronous feeding. It can sew the nice stitching between the medium material and thick material . The machine in the comprehensive performance of transmission light smooth, low noise, high durability, and equipped with protection hook overloaded on-off device. It is ensure that the joint products and the safety of the hook. Bobbin winder ensure the clamping thread, it can quickly start winding. Head cover and side cover can be open, convenient adjustment and maintenance of machine. This model also increase the operating space between 338 mm - 120 mm, increase the needle distance to 12 mm. Especially suitable for sewing the car cushion, sofa, seats, seat belts, air bags, summer sleeping mats, and automotive trim the assembly, also can be used in sewing tents, parachute and other large appliance sewing.
Specifications:
Model |
FX-867 |
Max. Sewing Speed |
2000 r.p.m |
Stitch Length |
0-12 mm |
Needle Bar Stroke |
36 mm |
Thread Take-up Lever stroke |
74.5 mm |
Presser foot lift |
By Hand: 8mm By knee: 16 mm |
Needle Type |
DP*17 18#-23# |
Number of Needle |
1 |
Rotary Hook |
Automatic Lubricated Large Rotary Hook |
Lubrication |
Automatic Lubricated |
Safety clutch device |
Yes |
Reverse feeding device by hand |
Yes |
Needle Gauge |
Standard: 6.4MM Special: 3.2.4.76.9.5.12.7MM |
Motor |
400W Clutch motor 1400R.P.M |
-
