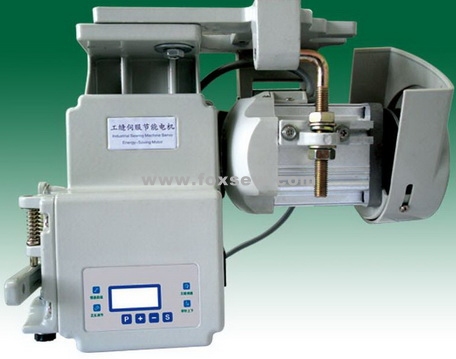

Brushless Servo Motor

Product Name: Brushless Servo Motor
Model NO.: FX6560
Origin: Zhejiang,China
Packing: Cartons
Brand Name: FOXSEW

Product Details: Brushless Servo Motor

Features:

Remarkable energy-saving: the motor starts instantly, stop instantly, has no-loading running, and it could save 60%-80% power at least compared with normal clutch motor.
Balance output power: its output power matches with need of sewing machine automatically economizing power.
Stepless change speed: the stepless change speed is controlled by foot in the operation from 100-3800 r.p.m
Low speed with high torque: the speed of 600r.p.m starts and the output power is 3Nm at least.
No maintenance, long life: brushless design to avoid cleaning the motor and changing the carbon brush frequently.
Super width voltage work: AC180-260 normal work.
One Motor multi-function: It could be instead of all the clutch motors within 600W.
Fast and low starting sewing set: It could be fast and low starting sewing set by starting instantly.
Up to the environment protection concept: the lower noise, the least heat, and the even operation for the motor running.
Needle up and down function: the panel design makes the regulation operation more convenient.

Applications for sewing machines: single needle and double needle lockstitch, heavy duty sewing machines, heavy duty zigzag sewing machines, post bed heavy duty sewing machines, etc...

Specifications:
