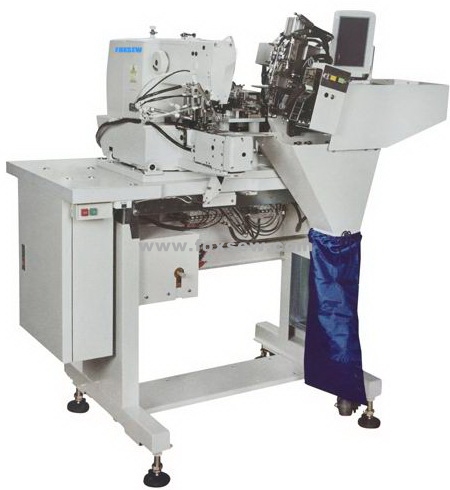

Double Needle Automatic Beltloop Setter Sewing Unit

Product Name: Double Needle Automatic Beltloop Setter Sewing Unit
Model NO.: FX430D-DBL
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Contact Now

Add to Basket

Product Details: Double Needle Automatic Beltloop Setter Sewing Unit

FOXSEW Double Needle Automatic Beltloop Setter, Automatic Double Needle Belt Loop Attaching Sewing Machine

Automatic Jean Belt-Loop Setter, Automatic Jeans Belt-Loop Attaching Machine, Automatic Belt-Loop Setter

Automatic Belt-Loop Attaching Sewing Unit, Fully Automatic 2-Needle Belt-Loop Sewing Unit

Working Video-1: www.foxsew.com/company-video/automatic-belt-loop-setter-2534.html

Working Video-2: www.foxsew.com/company-video/automatic-2-needle-belt-loop-attaching-sewing-machine-1093.html

Working Video-3: www.foxsew.com/company-video/double-needle-automatic-beltloop-setter-sewing-machine-unit-1000.html

Working Video-4: www.foxsew.com/company-video/automatic-2-needle-beltloop-attaching-machine-for-jeans-1104.html

Working Video-5: www.foxsew.com/company-video/automatic-belt-loop-attaching-sewing-machine-1125.html

Working Video-6: www.foxsew.com/company-video/automatic-jeans-beltloop-setter-sewing-machine-859.html

Working Video-7: www.foxsew.com/company-video/automatic-2-needle-belt-loop-setter-3144.html

Working Video-8: www.foxsew.com/company-video/automatic-beltloop-attaching-sewing-machine-3145.html

Working Video-9: www.foxsew.com/company-video/automatic-denim-jeans-beltloop-setter-3479.html

Working Video-10: www.foxsew.com/company-video/automatic-denim-jeans-belt-loop-attaching-sewing-machine-3473.html

Machine's Features:

(1) Independent research and development of needle machine can be used to automatically set tab jeans and casual pants ear of a shape, easy to learn equipment operation, saving time and effort. Automatic screening, cutting, folding and tacking processes once completed, and has a simple mechanical construction, easy operation and flexible adjustment, production efficiency.
(2) The unique design of automatic detection device can filter out waste pants loop joints, and implements automatic filter removal.
(3) Touch-screen operating system application to facilitate the management pattern editing and data, operating functions at a glance.

This machine streamlines procedure of four workers as cutting belt, bar-tacking, carrying and other four workers of enforcement sewing on normal sewing machine. FOXSEW FX430D-DBL saves not only the salary of workers, in average 1000$, but also improve the working efficiency by 70%.

Specifications:

Model NO.:	FX430D-DBL
Max. Sewing Speed:	2700 r.p.m
Needle Type:	DPx17 19#-21#
Sewing Width:	1.0-3.5 mm
Sewing Length:	5.0-22 mm
Presser Foot Lift:	21 mm
Weight:	255 KGS
Belt Loop Width:	7-20 mm
Bartacking Sewing Belt Length:	45-75 mm
