Automatic Underwear Elastic Waistband Attaching Sewing Unit

Product Name: Automatic Underwear Elastic Waistband Attaching Sewing Unit
Model NO.: FX-AT348
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Contact Now

Add to Basket

Product Details: Automatic Underwear Elastic Waistband Attaching Sewing Unit

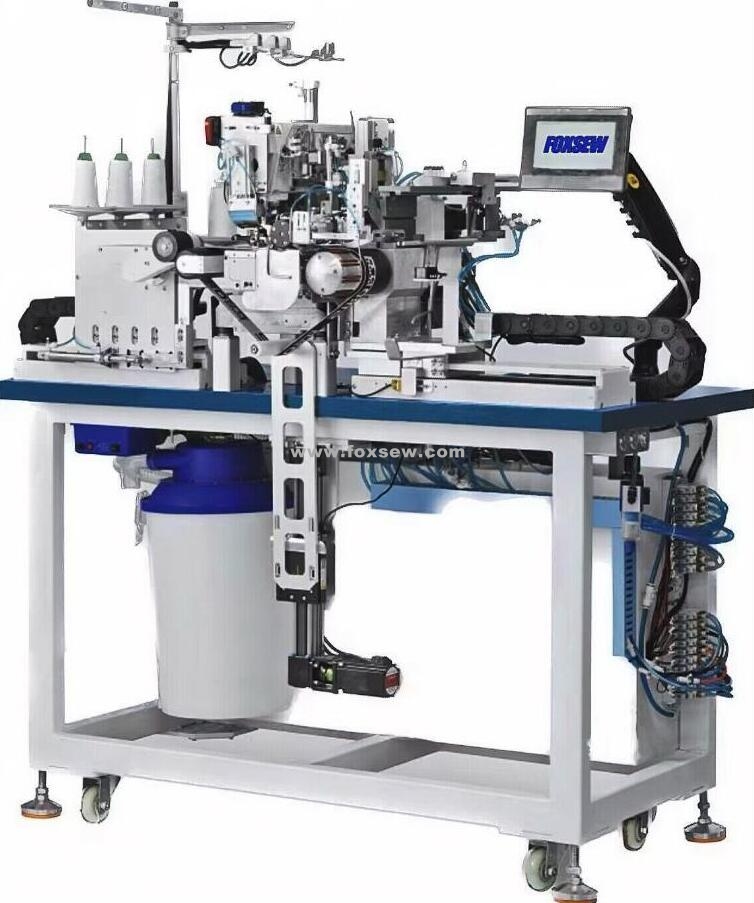

Automatic Underwear Elastic Waistband Attaching Sewing Machine FOXSEW FX-AT348

Working Video-1: www.foxsew.com/company-video/automatic-underwear-waistband-setting-station-2719.html

Working Video-2: www.foxsew.com/company-video/automatic-underwear-elastic-attaching-sewing-machine-unit-2722.html

Working Video-3: www.foxsew.com/company-video/automatic-underwear-waistband-attaching-sewing-unit-2721.html

Working Video-4: www.foxsew.com/company-video/automatic-underwear-elastic-band-sewing-unit-2720.html

It's equipped with electric and pneumatic processing systems, automatic revolver deployment system, automatic deviation correction equipment, self-detection of sensors, and laser-assisted matching,automatic sewing of all kinds of knitted underwear, elastic belt pajamas briefs elastic waistband machine.

The left feeding roller ensure the fabric and tooth synchronous to convey smoothly. Rectifying devices.control the body edge more sensitive and stable , ensure the overlapped stitch and seam allowance consistent. Extend the suitable range for the regular radian unit.Fabric adaptability widely, different fabric color can be switched easily. Infrared detection assist to locate the rear seam position accurately. Automatic seam inspection, can detect the seam position and start sewing, even the rubber band is placed arbitrarily.Automatic differential adjustment device to achieve uniform sewing effect. Highly automation, adjust simply, operate easily.

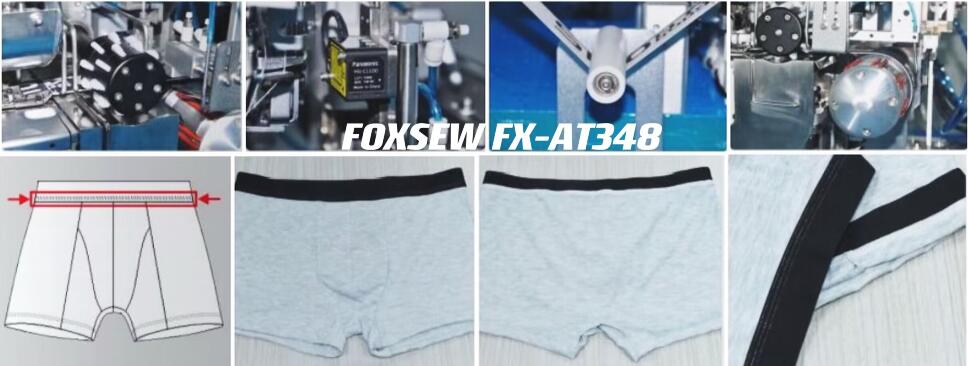

Automatic waistband attachment on underpants.Electro-pneumatic operation system.With automatic rectifying device.Left wheel expansion automatic expansion system. Laser ray assisted setting.With an automatic sensor detection system.Automatic seam overlapping device.Automatic seam position alignment. Automatic feeding (waistband) device.

Used for Boxing Underwer, Jersey,Lycra underwear Elastic waistbands attaching sewing process.

Specifications:

Model NO.:	FOXSEW FX-AT348
Voltage:	110/220V, 50/60HZ
Air Presser:	6kgs
Gas Consumption:	150L/Min
Size Range:	30-60cm diameter, Width: 2-5cm
Production Capacity:	200-220pcs per hour
Packing Size:	130x95x140cm
