Automatic Feeding Label Attaching Sewing Machine

Product Name: Automatic Feeding Label Attaching Sewing Machine
Model NO.: FX2210-ALA
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW
Quality System Certification: CE

Contact Now

Add to Basket

Product Details: Automatic Feeding Label Attaching Sewing Machine

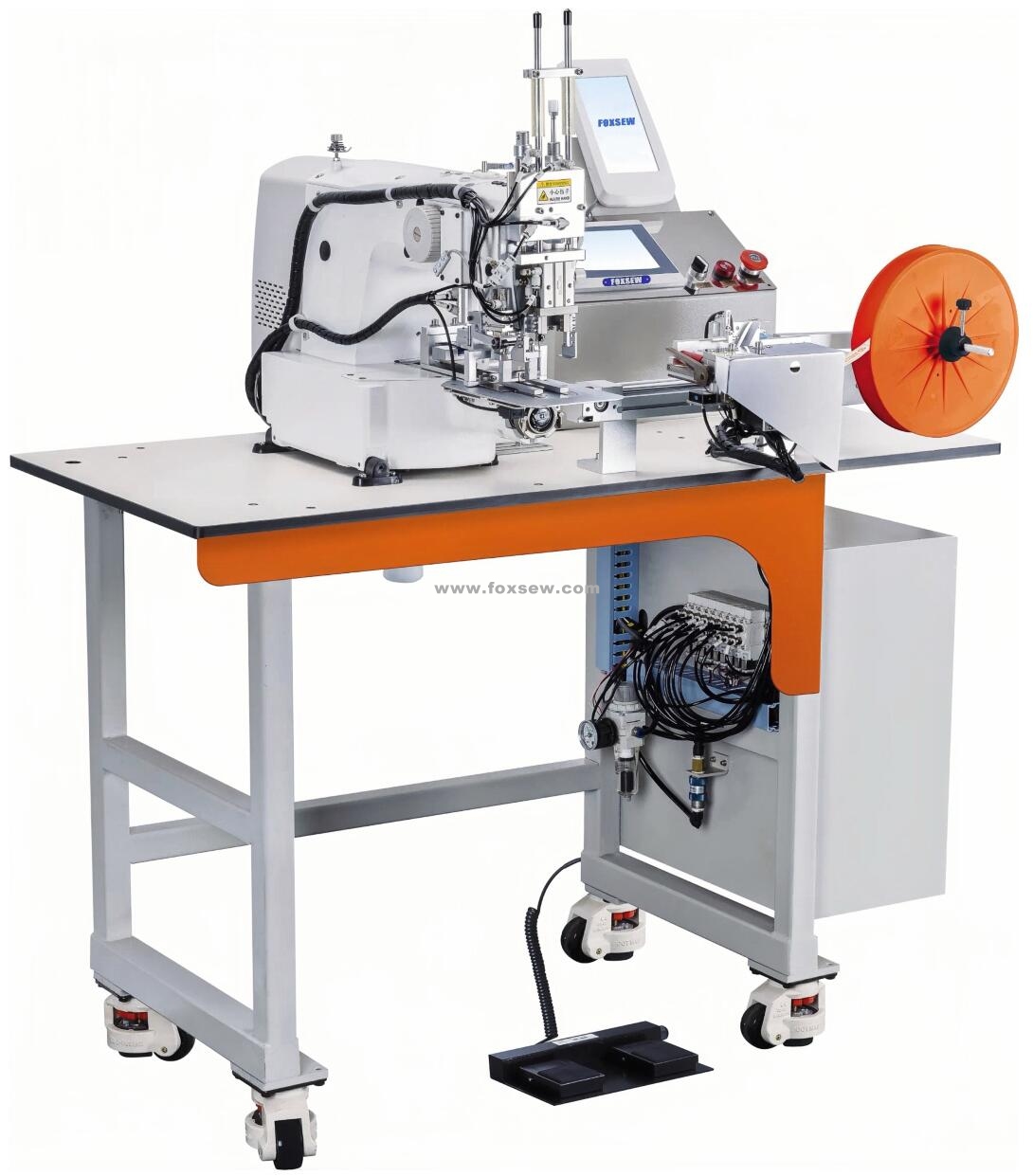

Automatic Feeding Label Attaching Sewing Machine Unit FOXSEW FX2210-ALA

Automatic Label Cutting, Automatic Label Feeding, Automatic Label Folding, Automatic Label Attaching.

Automatic Feeding and Folding Label Attaching Pattern Sewing Machine Unit

Working Video-1: www.foxsew.com/company-video/automatic-feeding-label-attaching-sewing-machine-3032.html

Working Video-2: www.foxsew.com/company-video/automatic-feeding-labels-attaching-sewing-machine-unit-3033.html

Working Video-3: www.foxsew.com/company-video/automatic-label-attaching-sewing-machine-3034.html

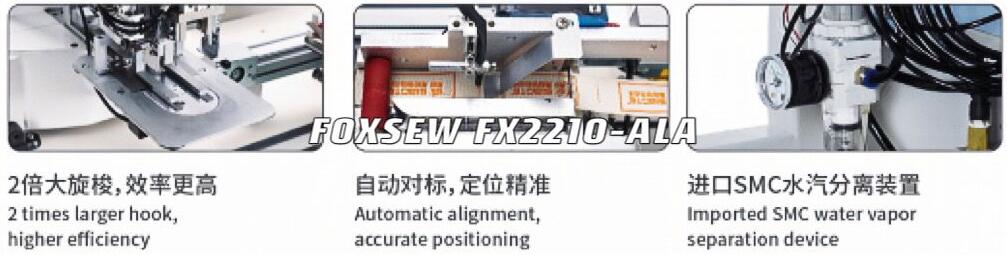

Automatic Feeding Labels Attaching Sewing Machine, 2-times large hook, higher efficiency, Automatic alignment, accurate positioning, imported SMC water vapor separation system device, LOGO scanning function.

Features:

1. The output can be preset, and it can be automatically reminded when the output is reached.

2.double sizes large hook, reducing the number of hook changes

3. The whole roll of labels eliminates manual cutting, folding, ironing and other processes.

4. It is 3-5 times faster than the conventional manual label attaching sewing process.

5. Automatic identification of LOGO trademark function accurate positioning.

6. Just press the panel parameters, and the length of the label can be adjusted at will with a high degree of automation without skilled operation.

Traditional labeling sewing procedure requires skilled workers to operate, and it is necessary to manually complete the front and rear reinforcement seams on the left and right sides with a single needle lockstitch sewing machine. The position of the label or trademark reinforcement seam should be relatively accurate. There should be no stitches to sew out the trademark or skew, otherwise it will be a process that does not meet the standard. In response to this user's pain point, FOXSEW has developed the functions of one-time automatic completion of automatic cutting and labeling, automatic folding shaping, trademark position alignment identification, and automatic completion of sewing and labeling. It has greatly improved work efficiency and standardisation, and also reduced the requirements for skilled workers.

Specifications:

Model NO.:	FOXSEW FX2210-ALA
Sewing Head:	FOXSEW FX2210G
Needle Type:	DPx5 11-14#
Sewing Length:	20-80mm
Sewing Width:	5-45mm
Stitch Length:	0-5mm
Packing Size:	150x100x165cm
Weight:	265KGS
