Automatic Velcro Tape Cutting and Feeding Device

  • Product Name:  Automatic Velcro Tape Cutting and Feeding Device
  • Model NO.:  FX-T6100
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Quality System Certification:  CE
Contact Now

  • Product Details:  Automatic Velcro Tape Cutting and Feeding Device

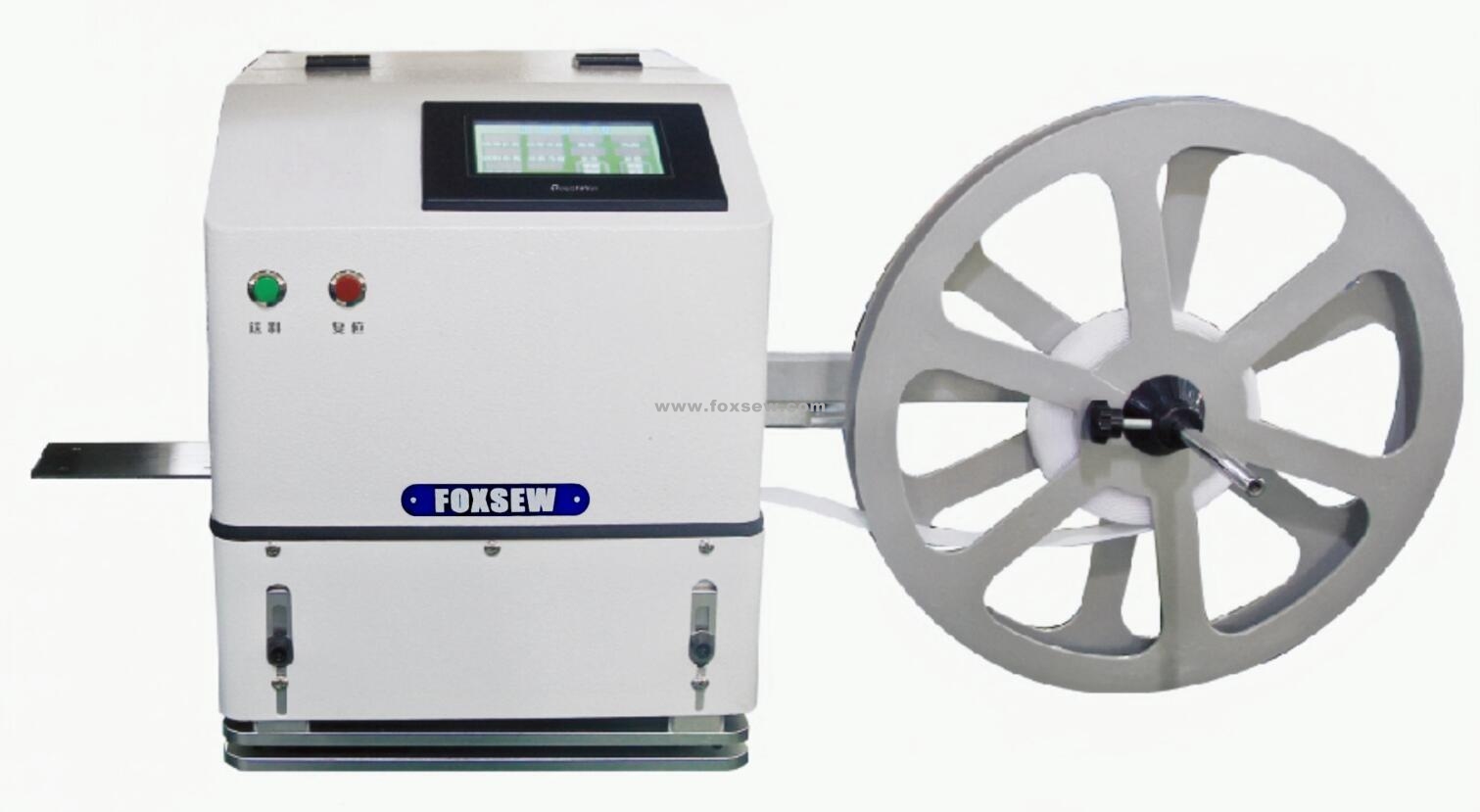

FOXSEW FX-T6100 Automatic Velcro Tape Cutting and Feeding Device

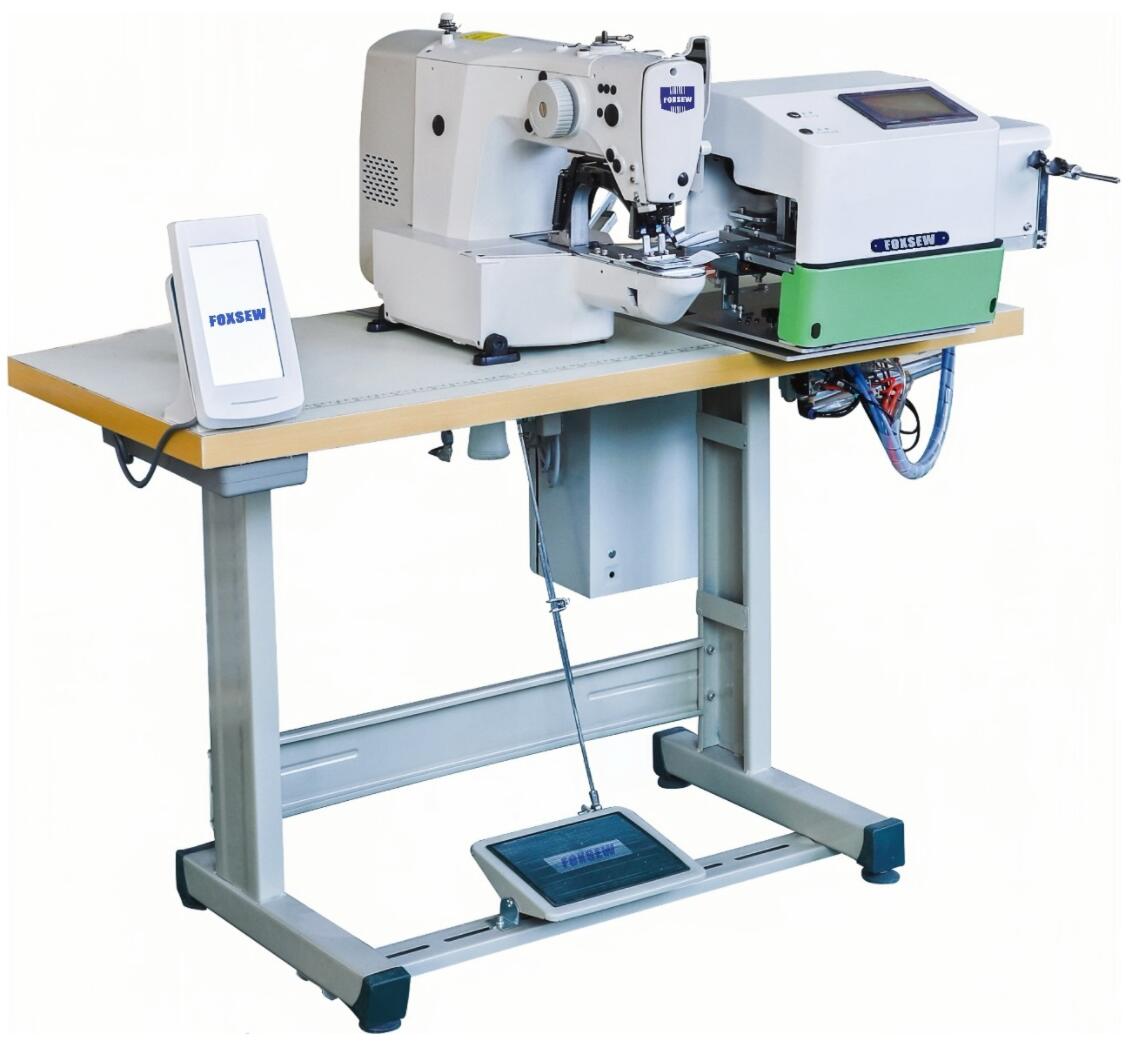

Automatic Velcro Cutting Feeding Sewing Machine FOXSEW FX-T6100-1900
Automatic Velcro Feeding and Attaching Sewing Machine FOXSEW FX-T6100-2210G
Automatic Velcro Tape Cutting and Feeding Device FOXSEW FX-T6100
Automatic Velcro Cutting and Feeding Device FOXSEW FX-T6100
Automatic Feeding Velcro Tape Attaching Sewing Machine FOXSEW FX-AT6100
Automatic Cutting and Feeding Velcro Tape Attaching Sewing Machine FOXSEW FX-T6100-1905
Applications:  It is suitable for various of velcro sewing on clothing, glove etc.
Efficient automatic cutting, automatic feeding, automatic sewing, working efficiency increased by 400%. Replace the knife molds, you can achieve the round corner, oblique Angle, right Angle and other specfications of cutting and sewing. according to the sewing requirements, you can choose to feed velcro up material or under material, easy to achieve high quality sewing. Standard large touch screen panel, pattern and parameters can be easily edited and set conveniently, easy to operate.
Features:
1. Learning: When the feeder arm is aligned with the sewing machine, press this key, and then press the ← key to move the feeder arm to the center of the needle of the sewing machine. If it has moved, press the → key to return, and then press Enter. The feeding distance is automatically adjusted. The adjustment speed is fast.
2. Compensation: Due to different materials, the cut material may not match the input parameters. Press the compensation key, input the cut size, and the machine will adjust the length automatically.
3. Sewing machine press material: adopt the cylinder press material mode, press this key: press down the material, so that the material will not move.
4. Air blowing: blow air downward when cutting the tape, so that the material will not warp up, which is convenient for the machine arm to press the material.
5. Feeder arm: It adopts stepper motor for feeding, which has fast feeding speed, high feeding precision, low noise and fast adjustment of feeding distance.
6. Anti-collision function: By installing the sensor, it can prevent the collision between the feeder arm and the sleeve jointer caused by the operator accidentally stepping on it.
Scope of application: Velcro.
By changing the cutting-dies/cutting knife-molds, it can realize the sewing of round, right and different angles, with a wide range of applications, fast feeding speed and convenient adjustment. The Velcro is fed into the card slot and it is not easy to fall out. Widely used in reflective clothing, luggage, carpets, jackets, tents, umbrella, bag, shoes, hats, toys, etc. and other factories.
Specifications:
Model NO.:  FOXSEW FX-T6100
Feeding Speed:  60-65pcs/Min
Feeding Sroke:  300mm
Feeding Width:  0-60mm
Feeding Length:  0-1000mm
Air Pressure:  0.35-0.45Mpa
Cutting Knife Blades:  Straight/Round/Corner/Special
Voltage:  110V/220V
Power:   80W
Packing Size:   70x55x50cm
Weight:   50KGS
