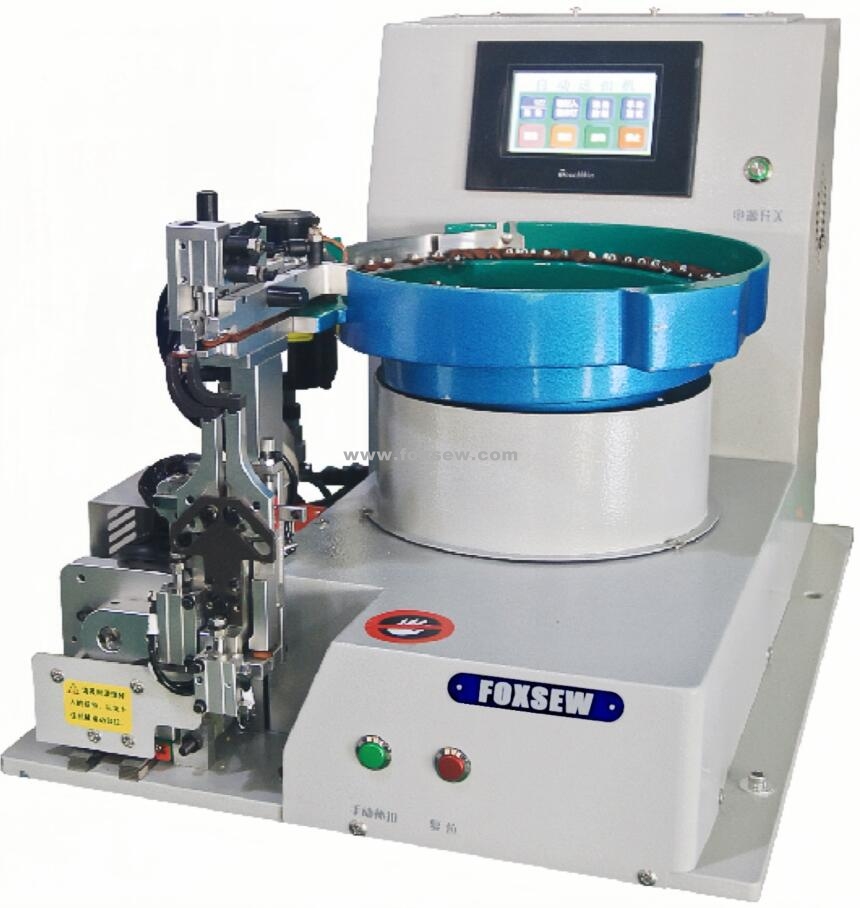

Automatic Shank Button Feeding Device

FOXSEW Automatic Shank Button Feeding Device, Automatic Shank Button Feeder

It's used for stitching all kind of Shank buttons, mushroom shape buttons, umbrella shape buttons, vertical type buttons, etc...

FOXSEW Automatic Shank Button Feeder Machine can be matched to all kinds of JUKI, BROTHER Button Sewing Machines, like 1903A, 438D, 373D, 377D, 1377D, FOXSEW 439D, FX-T4 etc... can be also matched existing machines which garments factories already used, can save cost and no need to buy new button sewing machines.

Working Video-1: www.foxsew.com/company-video/automatic-feeding-shank-button-sewing-machine-3039.html

Working Video-2: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-sewing-machine-3041.html

Working Video-3: www.foxsew.com/company-video/automatic-shank-button-feeding-sewing-machine-3043.html

Working Video-4: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-machine-3038.html

Working Video-5: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-sewing-machine-3042.html

Working Video-6: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-machine-3040.html

Working Video-7: www.foxsew.com/company-video/automatic-shank-button-attaching-sewing-machine-3342.html

Working Video-8: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-sewing-machine-3341.html

Working Video-9: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-sewing-machine-3345.html

Working Video-10: www.foxsew.com/company-video/automatic-shank-button-attaching-sewing-machine-unit-3361.html

Working Video-11: www.foxsew.com/company-video/automatic-shank-button-feeding-and-attaching-sewing-machine-unit-3369.html

Working Video-12: www.foxsew.com/company-video/automatic-feeding-shank-button-attaching-sewing-machine-3462.html

Working Video-13: www.foxsew.com/company-video/automatic-feeding-pearl-button-attaching-sewing-machine-3607.html

Features:
1. Using PLC touch screen operating system, the software is more stable and the page is more intuitive.
2. Two feeding modes are adopted: conventional feeding, pre-feeding, and free conversion according to needs, and conventional feeding: from the feeding groove directly to the buckle holder. Pre-feeding button function: turn on "pre-feeding button", buttons are pre-sent to the middle of the button feeding machine and the buttoning machine for standby (the standby position can be set), which is faster than the conventional button feeding speed.
3. The original buckle seat belt adjustment function: it is easy to adjust the position of the long handle and the short handle, and the unique button-like contour design of the buckle is used to make the buckle more stable. There is no need to loosen the screw of the clip seat and reinstall it, and it is more convenient and quick to change the clip. (Foxsew patented product)
4. The uniquely designed machine arm (buckle grab) template adjustment:just put a button to be nailed at the moment, put it on the thickness measurement template, then move the backing to the button, fasten the backing screw, take out the button, Faster setup. (Foxsew patented product)
5. Adjustment of the length of the button handle of the machine arm:According to the length of the button handle, it can be quickly adjusted according to the actual requirements through the adjustment screw, which is convenient and quick to adjust.
6. Buckle and buckle: The cylinder pressure buckle mode is adopted, the button does not deviate, and the clip is more stable.
7. Feeding slot: The uniquely designed, simple and efficient deducting slot adopts air blowing at the bottom and upper part, which makes it smoother without snapping. Timed back blowing device: so that the button will not be blocked at the entrance of the feeding groove.
8. Servo motor: High-power servo motor is used to feed the buckle, which has fast feeding speed, low vibration and low noise, and higher feeding efficiency.
Any combination: The equipment can be matched with various brands and models of buttoning machines such as Juki and Brother models, and can also be used with existing buttoning machines in garment factories, which greatly saves the cost of repurchasing new buttoning machines.
