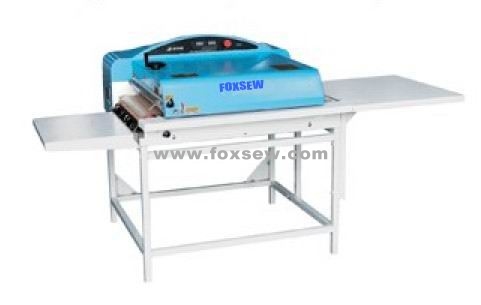

Fusing Machine

Product Name: Fusing Machine
Model NO.: FX500-A Series
Origin: Zhejiang,China
Brand Name: FOXSEW

Product Details: Fusing Machine

Details: It has the reasonable and compact structure, large heating area, even temperature, convenient speed regulation, sensible pressure adjustment, low noise, easy band-removal, repair and maintenance. It is the most applicable professional equipment for the clothes manufacture enterprise.

Specifications:

Model	FX400-A	FX500-A	FX600-A	FX900-A
Upper conveyer	400*1530mm	500*1530mm	600*1530mm	900*2700mm
Under conveyer	400*1840mm	500*1840mm	600*1840mm	9003200mm
Conveyer belt velocity	0-10m/min	0-7m/min	0-7m/min	0-7m/min
Fusing pressure	0-30N/cm²	0-30N/cm²	0-30N/cm²	0-30N/cm²
Fusing temperature	<=200¡ãC	<=200¡ãC	<=200¡ãC	<=200¡ãC
Electric power	5kw	5.75kw	6.5kw	9kw
Conveyer motor power	90w	90w	90w	120w
Power supply	220/380V	220/380V	220/380V	380V
Outline dimension	20558901170 mm	20559901170 mm	205510901170 mm	400016001200 mm
Weight	138kg	158kg	178kg	350kg
