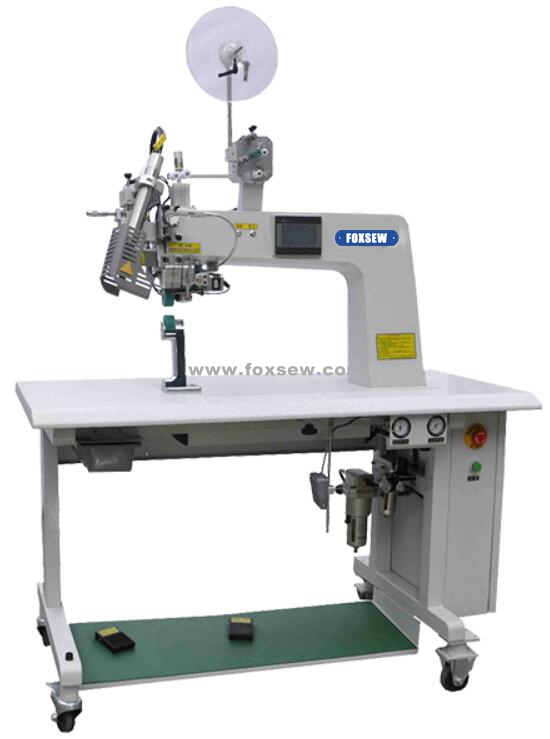

Hot Air Seam Sealing Machine

FOXSEW Hot Air Seam Sealing Machine for High-end Waterproof Garments, Clothes, and Shoes, etc...

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 1º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.

5. Be possible of working 24 hours continuously and produce highly efficiently.

6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.

7. Auto slightly fading function.

8. Different speed of upper and lower roller designed to ensure a better welding of elastic fabric as to avoid fabric ruffing

9. Setting for upper and lower roller can be adjusted according to different fabric, and different workmanship.

10. Large and strengthened zigzag-rule structure provides efficient and flexible working space.

Specifications:

Model	FX-V8 / FX-V8-S
Power	110V/220V 50/60HZ
Rating Power	2800W
Heat Control	Room Temperature~700°C adjustable without bands
Speed	2-18m/min (adjustable without band)
Air Supply	0.03~0.2Mpa (adjustable without bands, displayed by a pressure meter)
Nozzle Width	Standard Flat Nozzle 24mm
Pressure of upper pinch roller	0-0.2Mpa adjustable without bands (pressure meter display)
Pinch roller Width	Mill finish standard 25mm, optional for others such as steel wheels, meshwork wheels and concave wheels
Packing Size	1350x730x1900 mm
Weight	170 kgs
Prevention Against Jumping over sewing work	There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping
