- Product Name: Hot Air Tape Seam Sealing Machine
- Model NO.: FX-V2
- Origin: Zhejiang, China
- Packing: Wooden Case
- Brand Name: FOXSEW
-

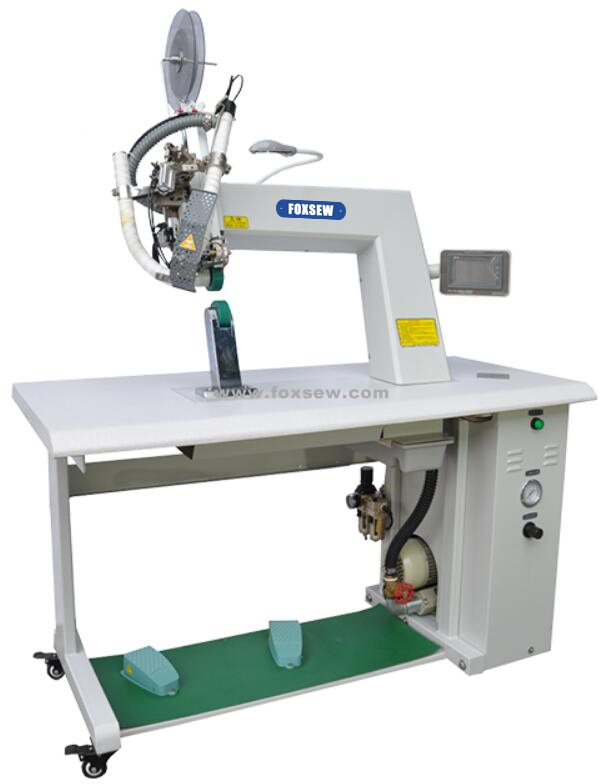

Product Details: Hot Air Tape Seam Sealing Machine
FOXSEW Hot Air Seam Sealing Machine for Protective Coveralls
Hot Air Tape Welding Machine for Tarpaulin, Hot Air Seam Sealing Machine for Garments
Working Video-1: www.foxsew.com/company-video/hot-air-seam-sealing-machine-protective-coveralls-2157.html
Working Video-2: www.foxsew.com/company-video/protective-clothing-hot-air-seam-sealing-machine-2158.html
Working Video-3: www.foxsew.com/company-video/hot-air-tape-sealing-machine-for-ppe-coveralls-2170.html
Features:
1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements
2. Auto controllable temperature, highly stability, temperature vary between ± 2º C, the upper limit temperature with alarming device.
3. Synchronous moving with up and down pressing wheel chain.
4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.
5. Be possible of working 24 hours continuously and produce highly efficiently.
6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.
7. Auto slightly fading function.
8. Auto clipped tape, sending tape and auto completed, to decrease the wastage of material.
9. Unique device with the down column suitable of any sizes of products close sealing pressure belt.
Specifications:
Model |
FX-V2 |
Power |
110V/220V 50/60HZ |
Rating Power |
2800W |
Heat Control |
Room Temperature~700°C adjustable without bands |
Speed |
2-24m/min infinity variable |
Air Supply |
0.35~0.5 Mpa |
Width of Pinch Roller |
Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand |
Width of Seam Sealing Tape |
14mm-22mm standard, others are available according to requirements |
Packing Size |
1300x600x1530 mm |
Weight |
140 kgs |
Prevention Against Jumping over sewing work |
There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping |
-
Product Images: Hot Air Tape Seam Sealing Machine
-
Long Arm Hot Air Welding Machine for Tarpaulin
-
Hot Air Welding Machine for Inflatable Boats and Tents
-
Hot Air Seam Sealing Machine
-
High-end Hot Air Seam Sealing Machine
-
Hot Air Seam Sealing Machine for Waterproof Shoes
-
Hot Air Seam Sealing Machine for Tents
-
Hot Air Seam Sealing Machine
-
Hot Air Seam Sealing Machine
-
Hot Air Seam Sealing Machine for Garments
-
Hot Air Seam Sealing Machine for Sleeve and Caps
