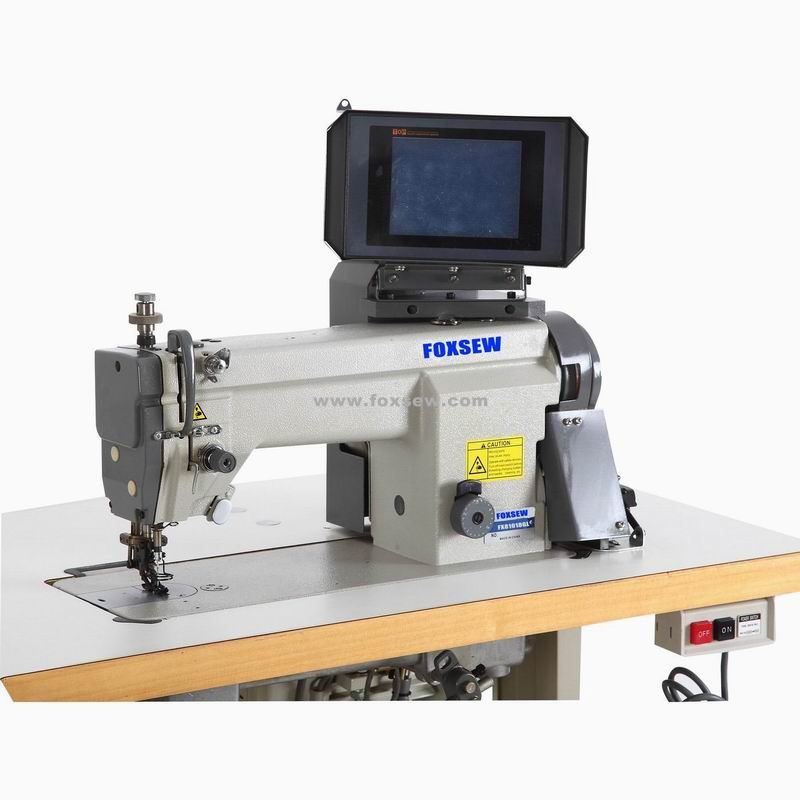

Integrated Sewing Unit for Programmed Sleeve Setting

Product Name: Integrated Sewing Unit for Programmed Sleeve Setting
Model NO.: FX-81018GL
Origin: Zhejiang,China
Brand Name: FOXSEW

Product Details: Integrated Sewing Unit for Programmed Sleeve Setting

Features:
1. Up to 50 gathering styles to fulfill different fullness requirement for various sleeve style, size and material.
Fullness distribution total 100 style for right and left sleeve can be individually programmed and stored.
2. Each sleeve seam can be divided to 12 sections.
3. Stored programmers can be divided out easily simply by inputting the pertinent code number.
4. Extra fullness up to 10-20% can added as when required by the operator.
5. Perfect system due to automatic mirroring grading and repairing.
6. Easy and simple input system, by touch screen.
7. Automatic needle positioning, and thread trimmer.
8. Servo electronic motor.

Specifications:

Max Sewing Speed	2000 rpm	Stitch System	301
Max Stitch Length	4mm(bottom)/8mm(top)	Max Fullness Per Stitch	8mm
Max thickness of material	4mm	Needle System	134R
Power	Single Phase 220V/50-60HZ	Pneumatic	6kg/cm
