FOXSEW Programmable Automatic Electronic Pattern Sewing Machine

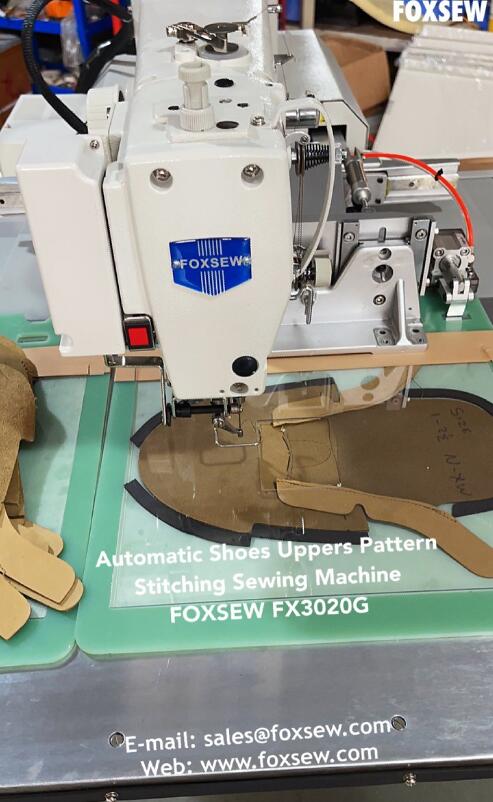

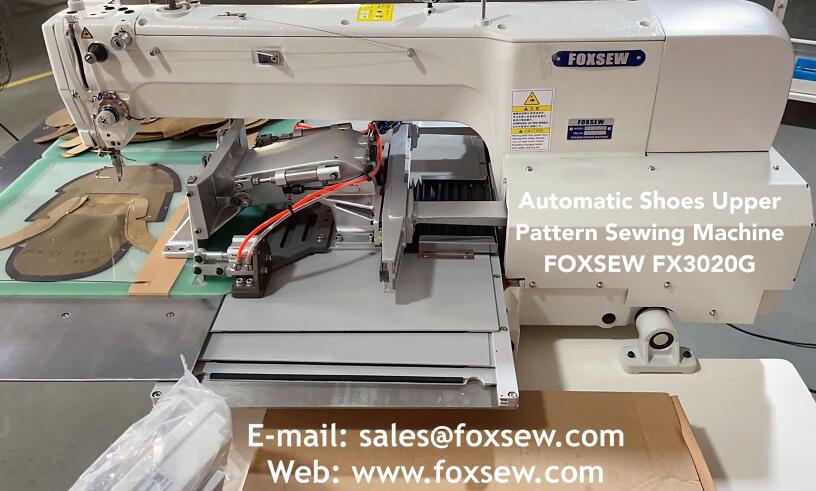

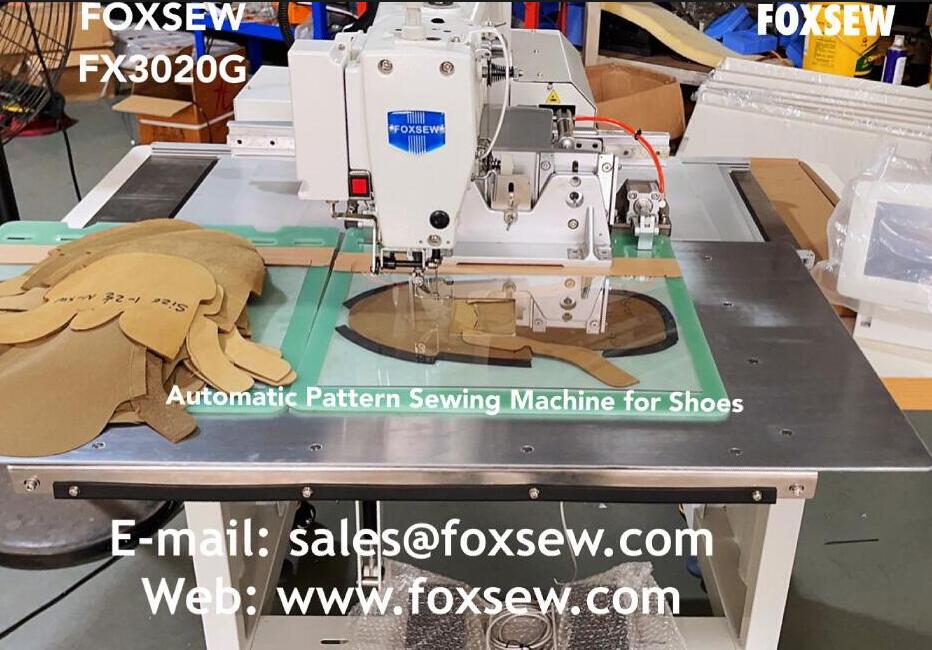

Automatic Shoes Upper Pattern Stitching Sewing Machine
Touch screen panel, Button panesl, Oil-free needle bar, Clean sewing, Simple operation, easy &accurate positioning, Unique upper thread catching device, New pulling thread-slacking device (National Patent). It is suitable for shoes ,bags and cuff of t-shirts, which improves productivity by 100% -300%.
Applied for layers of combined model plates in various kinds. Clamping and sewing simultaneously, the machine reduces the time wasted on waiting and improves efficiency. Automatic positioning and model plate scanning before start. Successive and automatic program changing. Sewing layers of combined patterns in same fabric, this device reduces the producing period by using same table and stand.
The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label AND badge attaching, shoe applications and many more special applications.
Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.
Characteristics: Max. stitching speed is 2,700rpm. achieved high productivity with fast sewing speed and feeding speed;
Large rotating hook; Liquid crystal touch operation pane; Applying the same Mitsubishi controlling system; Automatic thread trimmer; Versatility of application.
Specification:
| Model NO.: | FX3020G |
| Max. Sewing Speed: | 2700r.p.m |
| Max. Sewing Area: | 300x200mm |
| Stitch Length: | 0.05-12.7mm |
| Max. Stitch Amout: | 20000 needles/pattern |
| Storage Amount of Stitches: | 500000 stitch can be stored |
| Presser Foot Drive: | Pneumatic |
| Presser Foot Lift: | Max. 30mm |
| Big Foot Presser Method: | All-in-one presser foot |
| Rising Amout of intermittent foot: | 22mm |
| Thread Wiper: | Yes |
| Cutting Device: | Yes |
| Air Presser: | 0.5Mpa, 1.8L/min |
| Servo Motor: |
750W |
