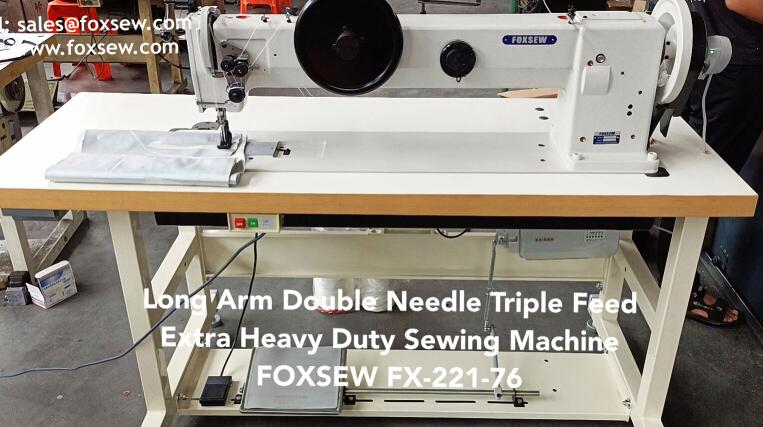

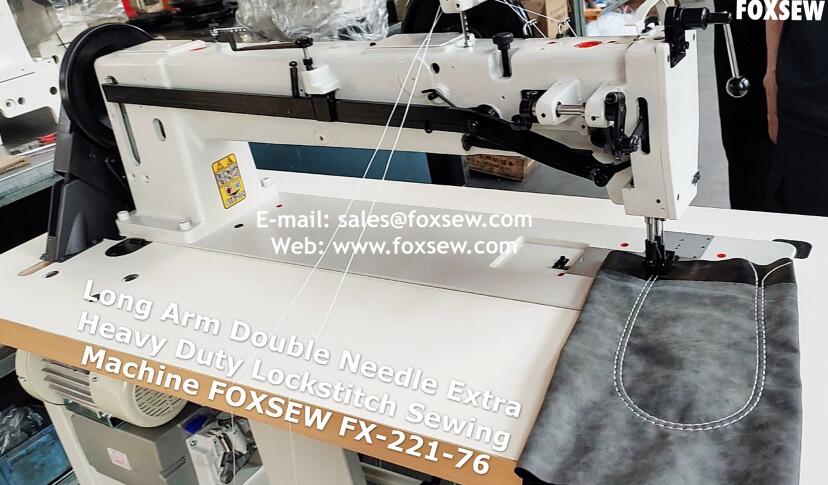

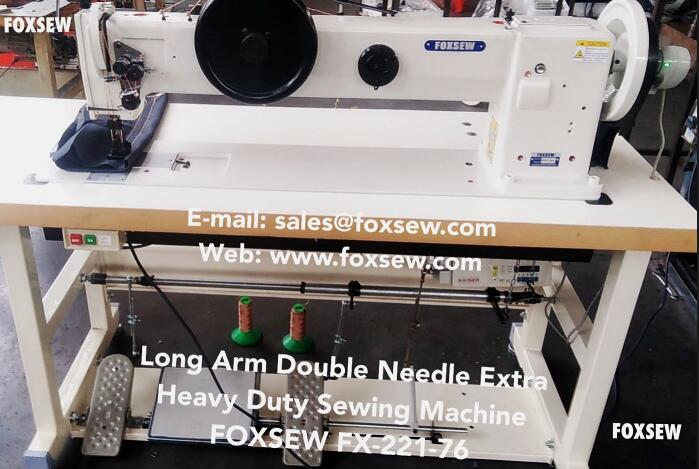

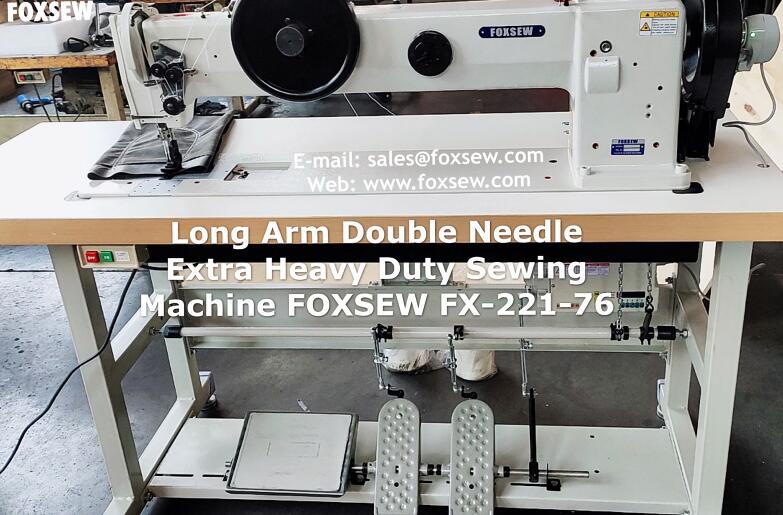

FOXSEW FX-221-76 Super Long Arm Double Needle Flat Bed Triple Feed Walking Foot Extra Heavy Duty Lockstitch Sewing Machine for Leather Upholstery and Heavy Duty Webbings, for Stitching Boat Sails, Tents, Parachute, Leather Sofa, used for Canvans, Vinyl, Synthetic Leather, Laminated and Rubber Fabrics.
FX-221-75 Super Long Arm Single Needle Flat Bed Triple Feed Walking Foot Extra Heavy Duty Sewing Machine for Leather and Fabrics Upholstery and Webbings Stitching and Decorative Seaming, for stitching tents,tarps,awnings,truck covers,auto marine and furniture upholstery,field covers,fabric structures and heavy bulky products.
Applications: Tents, Boats Sails, Parachute, Straps, Furniture upholstery, Leather, sofa, Car seat, Cushion, Air bag, Container bags, Wide textile lifting slings & cargo lashing strap, Safety belts and Harness, Sails, Tents, Awnings, Canopies, Military Parachutes, Crane slings, Spray hood, Carpets, Luggage, Industrial safety products, Construction Barriers, Field covers, Divider curtains, Protective clothes etc.
Working Video: www.foxsew.com/company-video/long-arm-double-needle-walking-foot-leather-upholstery-sewing-machine-550.html
Features: This model is the king size of extra heavy materials compound feed lockstitch sewing machine of FOXSEW brand, it adopts vertical rotating hook, sliding lever thread take-up. We divide it into single-needle and double-needles. It adopts Synchronic feeding of needle bar and feed dog. The comprehensive performance of whole machine is so strong, especially includes these aspects: smooth drive train, low noise, large operation space,
we also installed the clutch device to pretend the rotating hook from overloading, insure the safety of products and rotating hook. Convenient operation of pedal type reverse-feed, push-button type needling-distance regulating mechanism, adopts concealed bobbin winder, equipped with automatic lubrication rotary horizontal hook,
it can reduce the frequency of changing the baseline when sewing thick seaming work piece. It is suitable for leather, artificial leather, Canvas, nylon chemical fibber, synthetic material, rubber and so on which is extra heavy materials, used for sewing sails and tents, cushion, sofa, beach umbrella, truck’s hook etc...
Specifications:
Model |
FX-221-76 |
FX-221-75 |
Number of Needle |
2 |
1 |
Max. Sewing Speed |
1200 r.p.m |
|
Stitch Length |
0-10 mm |
|
Needle Bar Stroke |
46.8 mm |
|
Presser Foot Lift |
By hand: 12 mm By Knee: 21.5 mm |
|
Needle type |
DD*1 21#28# |
|
Rotating Hook |
Horizontal Fall Rotation Extra Large Rotary Hook |
|
Presser Foot Alternation |
6-19 mm |
|
Lubrication |
Manual Lubrication |
|
Scale |
Sliding Lever Type |
|
Needle Gauge |
6.35 - 60 mm |
|
Operating Space |
762*160 mm |
|
Motor |
750W Servo Motor |
