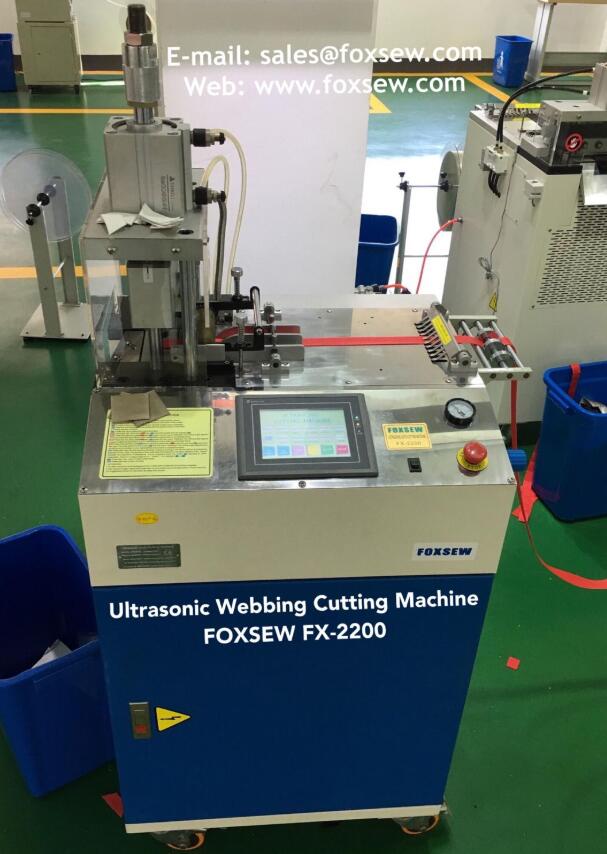

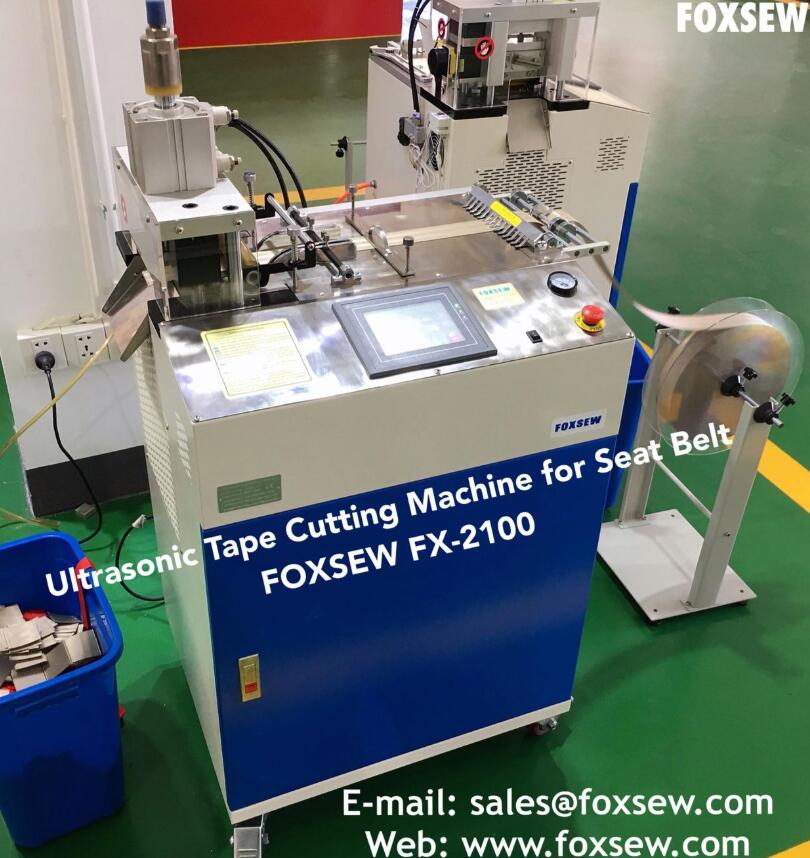

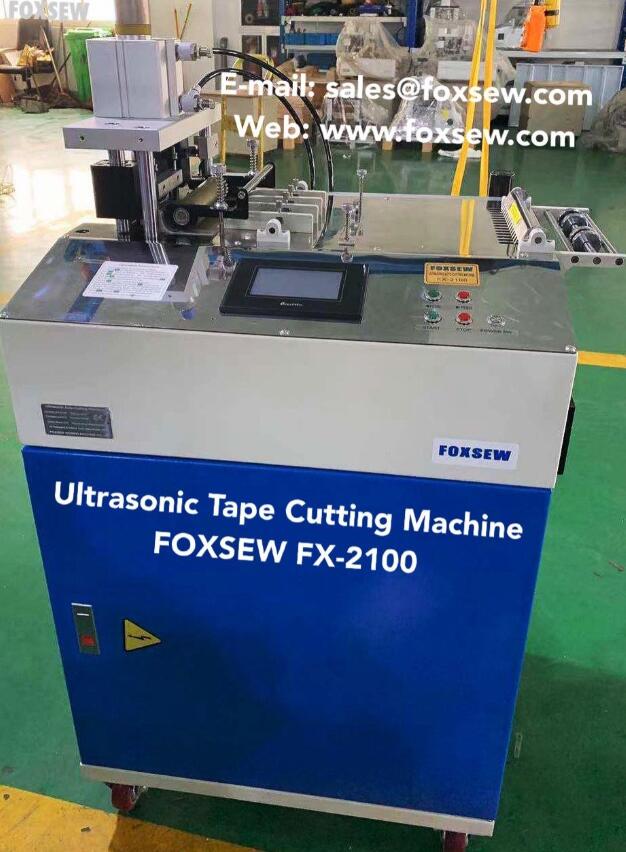

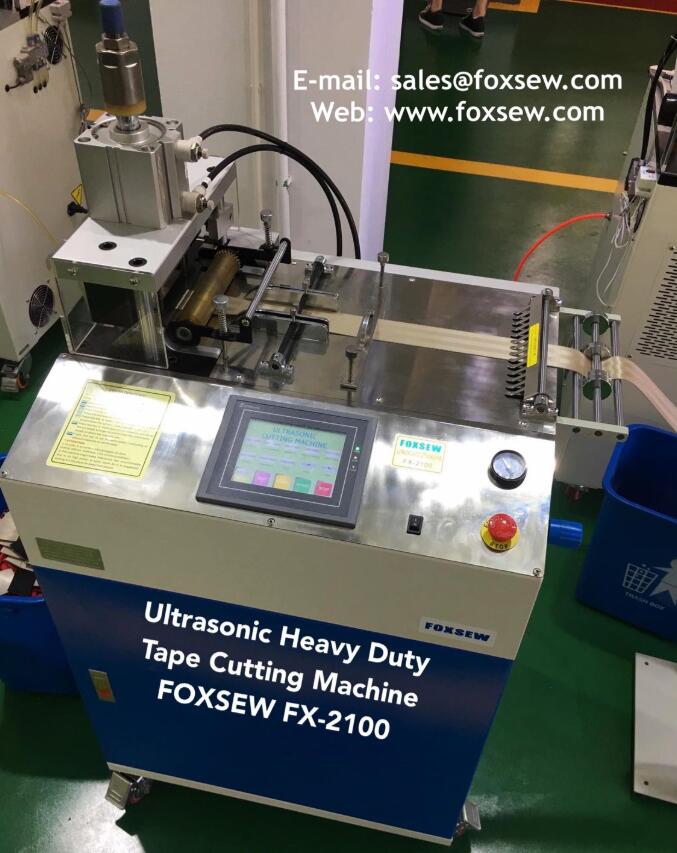

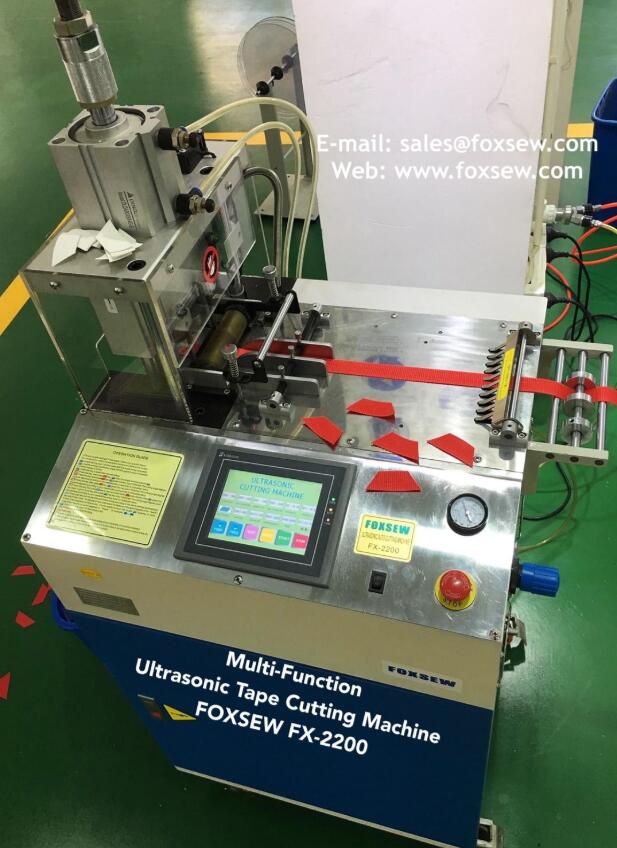

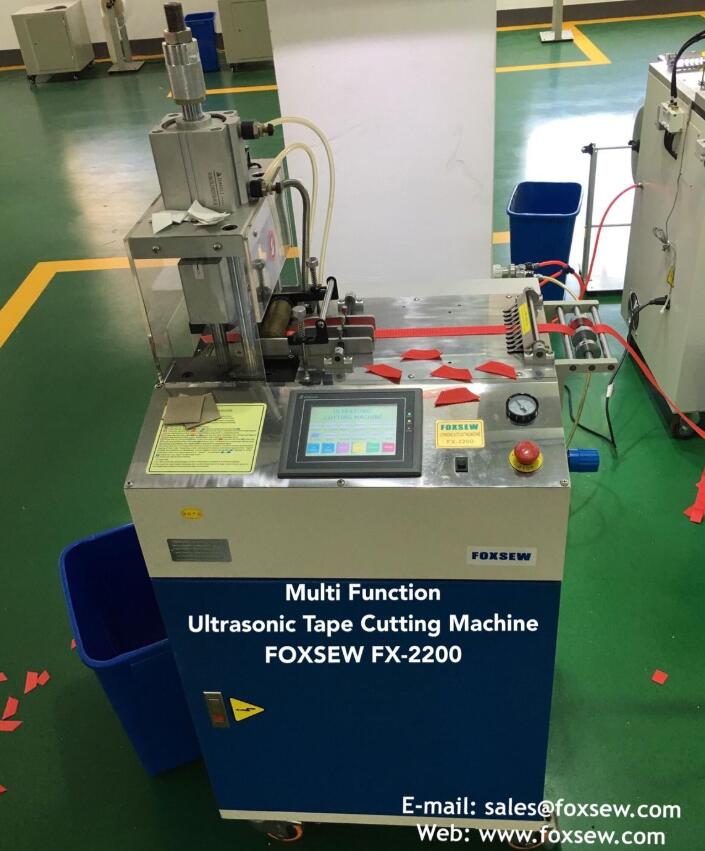

FOXSEW Multi Function Ultrasonic Tape Cutting Machine, Ultrasonic Webbing Cutting Machine
Working Video 1: www.foxsew.com/company-video/ultrasonic-tape-cutting-machine-with-punching-hole-505.html
Working Video 2: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-and-hole-punching-machine-438.html
Working Video 3: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-machine-with-rotating-knife-444.html
Working Video 4: www.foxsew.com/company-video/ultrasonic-cutting-and-hole-punching-machine-514.html
Working Video 5: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-machine-439.html
Working Video 6: www.foxsew.com/company-video/multi-function-ultrasonic-rotating-knife-cutting-machine-680.html
Working Video 7: www.foxsew.com/company-video/multi-function-ultrasonic-webbing-cutting-machine-840.html
Working Video 8: www.foxsew.com/company-video/ultrasonic-safety-belt-cutting-machine-841.html
Ultrasonic cutting, large touch screen, sharing platform. Varity shapes.
Special features:
Ultrasonic cutting: Blade is not black, ghost edge and feel comfortable. The powerful transducer cut faster.
Accurate: The accurate cut of labels by using optronics sensor.
Varity shapes: The special technique of sharing platform can carry variety shapes of knife molds and replace mold quickly.
Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.

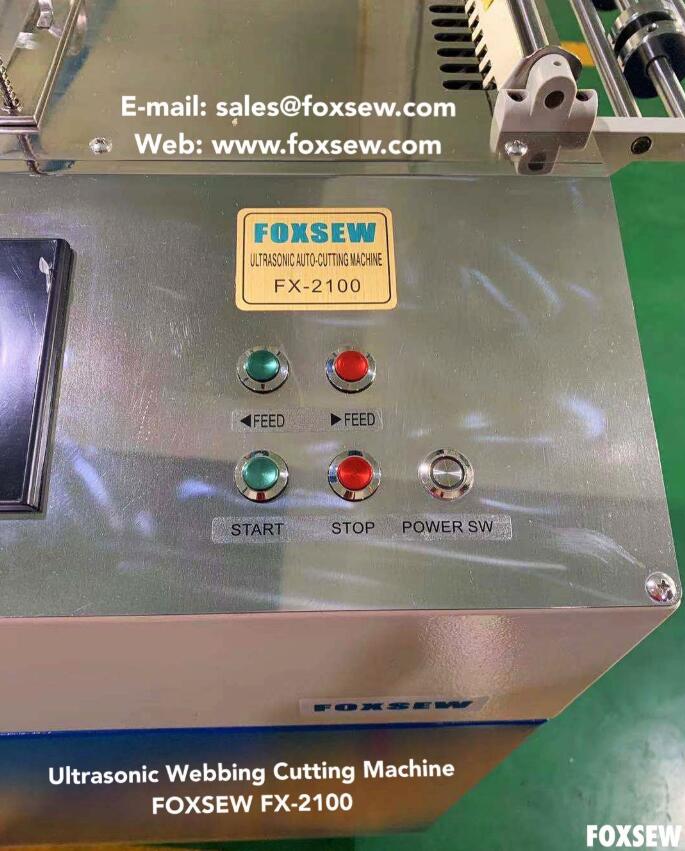

Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memory all cuttings for your convenience.
Applications:
Suitable for Woven Belts, Velcro, Shoelace, Zipper, Webbings, Labels, Safety Belts, Lifting Slings, And Kinds of Leather Belts. etc.
Specifications:
|
Model |
FX-2100 / FX-2200 |
|
Cutting Length |
25-99999 mm |
|
Cutting Speed |
120 p/min |
|
Max.Cutting Width |
100 mm |
|
Max.Cutting Angle |
45 degree |
|
Sound Frequency |
20K HZ |
|
Recommended Pressure |
0.4-0.7 Mpa |
|
Voltage |
110V/220V |
|
Power Rating |
1.5 KW |
|
Max. Power |
1.7 KW |
|
Weight |
155 KGS |
|
Packing Size |
700X610X1450 mm |
