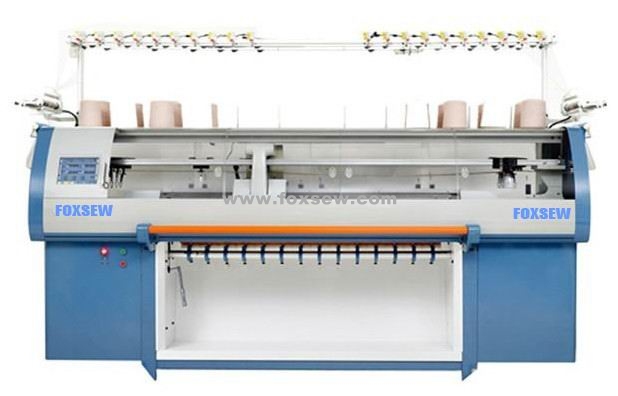

Computerized Flat Knitting Machine

Product Name: Computerized Flat Knitting Machine
Model NO.: FX2-52S
Origin: Zhejiang,China
Brand Name: FOXSEW

Contact Now

Add to Basket

Product Details: Computerized Flat Knitting Machine

Description:

FOXSEW Computerized Flat Knitting Machine is equipped with PICASSO programming system. It is the program designed

for pattern and auto withdrawal programs knitting machines. It Supports the Pattern and Program editing functions to further

reducing time and expenses in programming. Besides, the users could have a wide range or more complicate patterns

design options.
“Picasso” applies Windows operation software providing high working speed and efficient patterns editing. For instance,

we could edit various knitting patterns down load from digital camera; vision from scanner or from copy-right computer

graphics. With internet service today, it is convenient to transfer information from internet service provide by Window. Of all,

no matter where you are, once you are on-line, you could send or receive pattern files in just a blink, fast and cost saving.

Model	FX2-52S(Sinker type)(Japanese Avail operating system)
Segment bed	52"(132cm),Replaceable Segment
Knitting width	Maximum52"(132cm)
Needle Gauge	5.6.7.8.10.12.14 per inch
Speed	Knitting speed varies according to gauge and knittingcondition.MAX.1.2m/sec..24speed selection programmable command control.
Compact	Compound knitting cam system, each system can execute knit, tuck and miss 3 technique at the same time.
Transfer	Compound knitting cam system.each system can transfer from the front to rear, rear to front or both front and rear simultaneously without direction restriction. Auto racking and auto receiving.
Stitch cam	Each stitch setting is controlled by a step motor .It has 24 stitches of independent selections and each of them ranges from 00-180 steps for knitting pattern.
Needle selection	Each system has 4 sets special solenoids. Double cam system equipped totally 8 sets solenoids, which can be installed or removed simply from the carriage and maintained easily.
Yarn carriers	2*8 sets yarn carriers on 4 double side rails.switchable ib any area within the knitting width. Also can be equipped with special design yarn carrier for intarsia pattern(Option device).
Movable sinker	This system composed by two additional pieces of sinker needle bed. The sinker presser degree adjustable the positions by knitting program command.(FX2-52S)
Racking AC	Servo motor control.the programmable racking positions within 2 inches.each also having 1/4. 1/2and 3/4 micro adjust able positions.
Main take down	24 levels changeable tensions, adjustable automatically on each level.
Sub take down	24 levels changeable tensions, adjustable automatically on each level. Automatic open and close.
Carriage drive	AC servo motor control.tooth shape driving belt.no oil needed.24 speed selection and freely programmable.
Stop motion	Yarn breaking.knot.press off.needle break.over current.roll back.wrong racking. inappropriate position of presser.excessive yarn.and reaching on production target offer automatic stop.
Memory capacity	1024×4096 hung memory for the width and pattern length design.
Language	CRT indication English and Chinese are standard version. Supplement with other languages(Option software)
Power	AC3 phase 220v.electricity consumption 2.4KVA.
