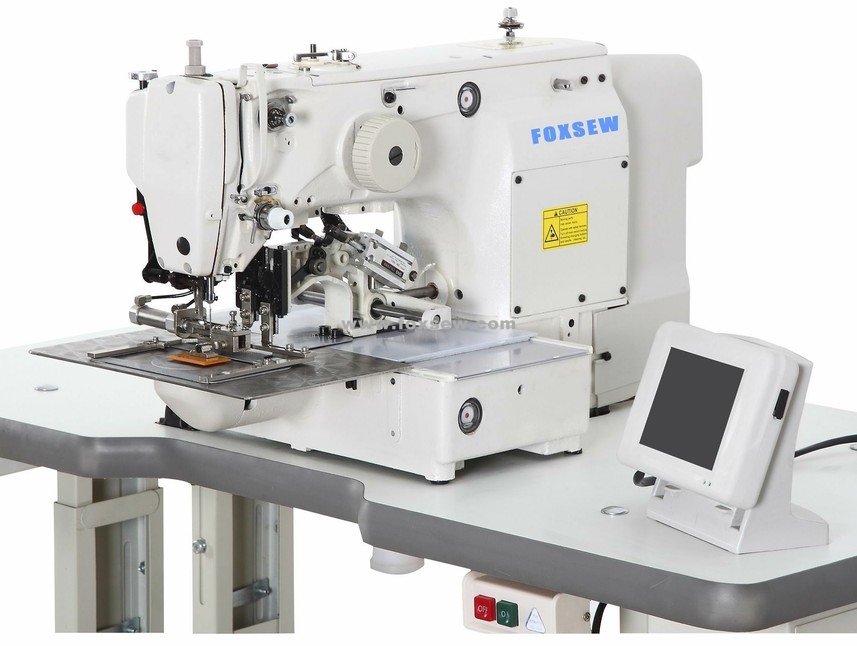

Electronic Pattern Sewing Machine

Characteristics:

1. Exquisite stitches, reliable floriation sewing.

2. Highest sewing speed 2,700rpm (Using the stitch length of 3.5mm)

3. Strong frame needle penetrating to easily position the textiles.

4. Using big presser foot of two steps descending to easily position the textiles.

5. Low power consumption, economical and practical.

6. Sewing completely according to stitching data.

7. Raising amount of the presser foot can be adjusted easily by the operation board.

8. It uses the simple program editor PD-300(options).

9. High Speed Sewing With Fair Lines Achieves The Fastest Sewing Speed In The World,

Excellent Sewing Quality And high efficiency as well as energy saving.

10. Adopting servo control and textile feed device with enhanced rigidity, thus, high-exquisite

patterns can be sewed, even while sewing with high speed or sewing thick textiles, bad stitches

and deviation problems which often occur to computer floriation machines would not exist.

Specifications:

Model NO.	FX-210D
Stitch Type	Single Needle Lockstitch
Working Area	130 X 60 MM
Max. Sewing Speed	2700 r.p.m
Speed Setting	200-2700 r.p.m
Feeding Mode	Intermittent, continuous feeding (switchable)
Stitch Length	0.1-12.7 mm (min. resolution 0.1 mm)
Expansion, Zoom out function	10-200% for X axis and Y axis respectively (min. resolution 0.1%)
Max. needles	8000 needle/pattern
Needle	DP*17 (#18)
Rotating Shuttle	Semi-rotation double rotating shuttle
Work Holder lift	25-30 mm
Stepping foot lift	20 mm
Stepping foot stroke	4-10 mm
Presser foot type	Air Pressure Type
Spindle Motor	400W Direct drive return servo Motor
Weight	120 KGS
Packing Size	1200 X 860 X 1170 MM
