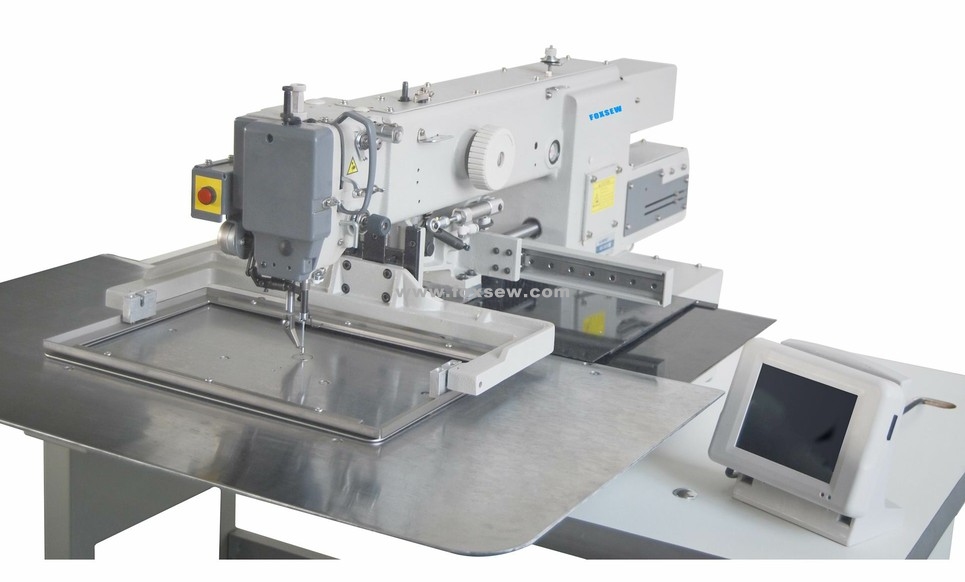

Electronic Pattern Sewing Machines

Product Name: Electronic Pattern Sewing Machines
Model NO.: FX2516
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Product Details: Electronic Pattern Sewing Machines

Used for: Apparel, Automotive and Aircraft, Leather Goods and Shoes, Military Uniforms, Safety Equipment, Industrial Equipment, Medical, Embroidery and Decorative Stitching, Home Furnishings. Pocket attaching, Attaching Labels, Badges, Applique work, Velcro and Decorative stitch, Any operation which requires frequent stopping and changing the angle of stitching.

Suitable for Garments, Leather Bags, shoe upper, car seat covers etc...

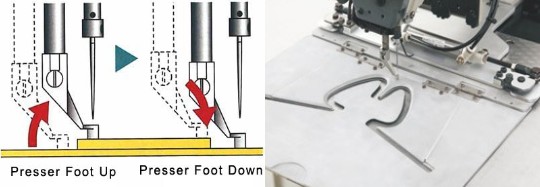

Electronically controls the stitching of any specific stitching pattern, easy to programme the specific sewing pattern, equipped with a walking presser foot and pattern input device.

Advantages of pattern sewing machine: No skill required, Saves time and labor’s cost, Uniform stitching of a particular part in all pieces, Cost effective, Increases productivity.

Working Video 1: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-sandals-192.html

Working Video 2: www.foxsew.com/company-video/programmable-electronic-pattern-sewing-machine-for-sandals-upper-195.html

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.

Characteristics:

Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook;

Liquid crystal touch operation pane;

Applying the same Mitsubishi controlling system;

Automatic thread trimmer;

Versatility of application.

Specification:

Model	FX2516
Sewing Area	250 X 160 MM
Thread Size	Polyester Thread 0.3-1 mm
Rotating Hook	Large Rotating Hook
Thread Trimmer	Have
Stitch Length	100 mm
Pattern Storage	Below 691
Stepping Foot Lift	Max.18mm
Max. Stitches	8000/Pattern
Work Holder Height	Standard 25mm (Max. 30mm)
Programmer	Build in Pattern Programmer
Driving Motor	Direct Drive Servo Motor
Needle	DP17X25
