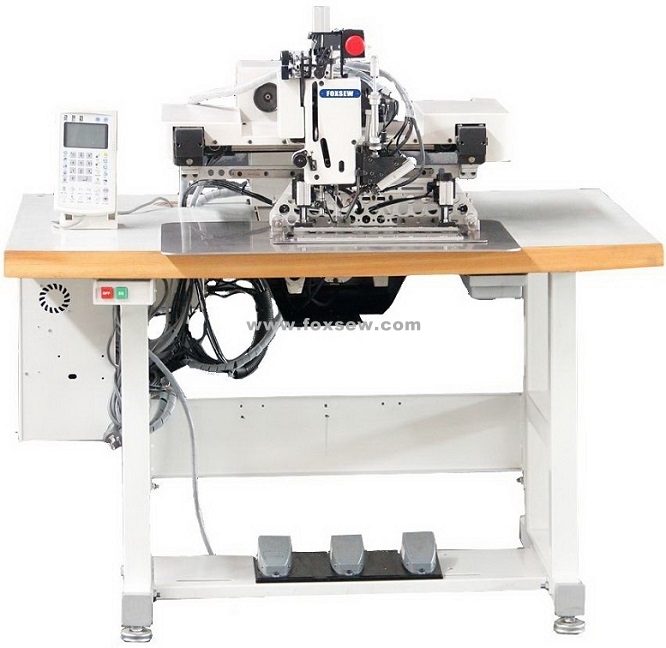

Automatic Extra Heavy Duty Webbing Slings Pattern Sewing Machine

Product Name: Automatic Extra Heavy Duty Webbing Slings Pattern Sewing Machine
Model NO.: FX3020H
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Product Details: Automatic Extra Heavy Duty Webbing Slings Pattern Sewing Machine

FOXSEW Extra Heavy Duty Programmable Electronic Pattern Sewing Machine for heavy duty materials

Application: lifting slings, rigging products, safety belts, military webbing, cargo lashing strap, hoists, safety harness, crane slings, industrial safety products, textile slings (reinforcement stitch or reinforced Eye), lanyards, saddles, sails, parachutes and furniture upholstery, Bar tacking for climbing ropes, safety ropes, sterling rope, cords, yacht ropes, ropes, braid ropes etc...

Working Video-1: www.foxsew.com/company-video/automatic-extra-heavy-duty-webbing-slings-sewing-machine-1044.html

Working Video-2: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-sling-rope-383.html

Working Video-3: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-rope-bartacking-384.html

Working Video-4: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-with-large-shuttle-hook-for-slings-ropes-368.html

Working Video-5: www.foxsew.com/company-video/automatic-heavy-duty-lashing-straps-and-lifting-slings-stitching-machine-1030.html

Working Video-6: www.foxsew.com/company-video/automatic-pattern-sewing-machine-for-extra-heavy-duty-webbing-450.html

Working Video-7: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-for-climbing-ropes-366.html

Working Video-8: www.foxsew.com/company-video/heavy-duty-automatic-pattern-sewing-machine-for-sling-webbing-510.html

Working Video-9: www.foxsew.com/company-video/extra-heavy-duty-automatic-sewing-machine-for-lifting-ropes-382.html

Working Video-10: www.foxsew.com/company-video/automatic-extra-heavy-duty-webbing-slings-pattern-sewing-machine-3526.html

FOXSEW Heavy Duty Pattern Sewing Machine with Large Shuttle Hook for any thickness threads sewing, the special trimming design has been applied the patent and could cut off threads instantly.
The Presser foot lift is up to 25mm, suitable for stitching the extra heavy duty materials.
Be provided with function of avoiding needle broken, preventing the needle to be cut of shape or cut off when sewing heavy materials.

Specifications:

Model No.	FX3020H / FX2516H / FX2010H
Max.Sewing Speed	1000 r.p.m
Hook	Large Shuttle Hook
Stitch Length	0.1mm-12.7mm
Needle Bar Sroke	56 mm
Out Presser Foot Lift	50 mm
Middle Presser Foot Stroke	10 mm
Middle Presser Foot Lift	33 mm
Thread Tension	Electronic Thread Tension
Pattern Date Storage	U Disk: 999 kinds of patterns Needle sews 5000 times per pattern
Function of Expand,Narrow	1-400% (0.1 unit)
Mode of Expand,Narrow	Add or reduce stitch length Add or reduce sewing times
Lubrication	Semi-automatic
Servo Motor	750W-1000W AC Servo Motor
Needle	DY x 3 # 180-250
Sewing Area	300x200 / 250x160 / 200x100 mm
