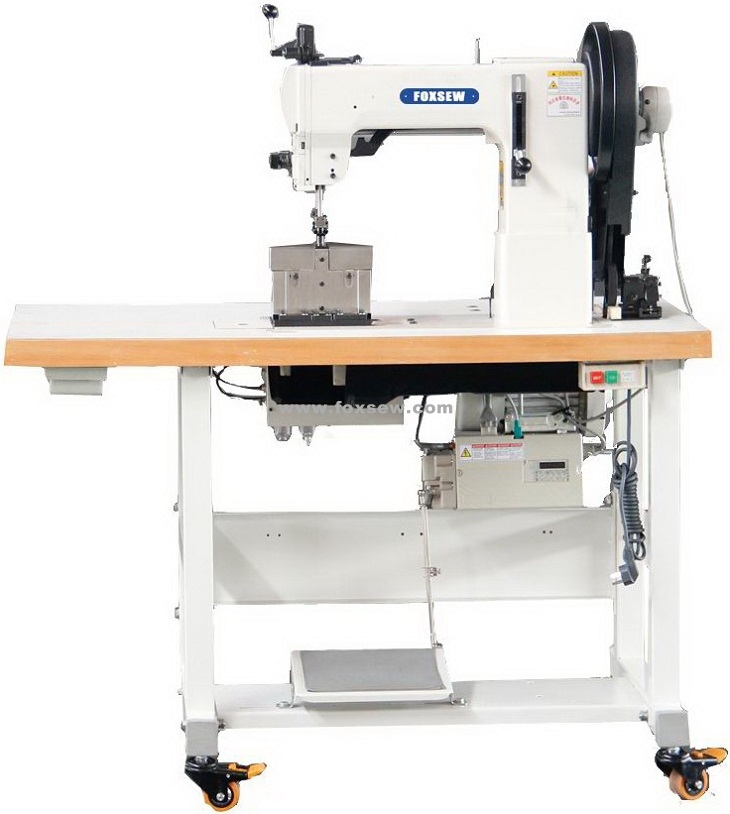

Double Needle Triple Feed Post Bed Thick Thread Decorative Seaming Upholstery Sewing Machine

  • Product Name:  Double Needle Triple Feed Post Bed Thick Thread Decorative Seaming Upholstery Sewing Machine
  • Model NO.:  FX-204-DP
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Double Needle Triple Feed Post Bed Thick Thread Decorative Seaming Upholstery Sewing Machine

FOXSEW Double Needle Heavy Duty Post Bed Triple Feed Walking Foot Lockstitch Sewing Machine with Large Shuttle Hook for Decorative Seaming and Ornamental Stitching on Leather Upholstery and Fabrics.

Applications: For Leather Upholstery, Luxurious Leather Sofas, Automotive Interior Trims, Car Seats, for functional and ornamental stitching, high-end leather sofas, fabric sofas, armchair, couch lounge, chair, car seat covers, upholstery furniture, leather shoes, saddles, leather crafts, automotive upholstery, marine upholstery, aerospace upholstery, leather bags, handbags, Tents, Umbrella, Sails, Protective covers, etc...high-level leather products.

Working Video: www.foxsew.com/company-video/double-needle-post-bed-walking-foot-extra-heavy-duty-leather-upholstery-sewing-machine-545.html

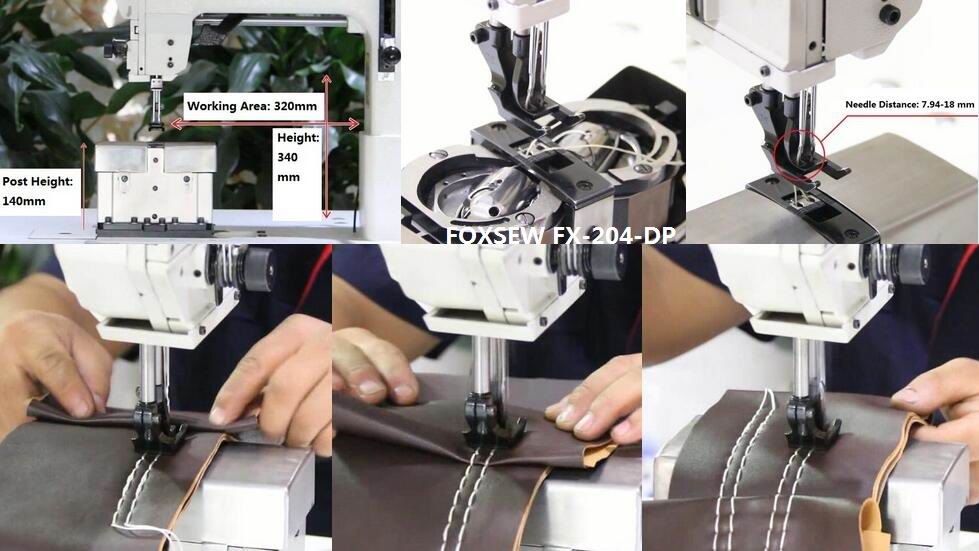

Features: The Adler 204 type extra large barrel shuttle has been specially designed for processing the extreme thread and material thickness of heavy weight materials. Max. metric thread size 7, V415, T-400, 1300dx3 or Amann Serabraid Thread 1400 T60 braided thread can be use without any difficulty; The post bed design gives you greater access and control when sewing decorative or top stitching, and functional stitching on shaped or 3d items, which would normally be difficult or impossible to sew on a standard flat bed machine; Its heavy duty combined triple feeding action by way of bottom feed, needle feed and walking foot top feed, guarantees effective handling of medium to heavy weight materials, leather and fabrics etc, High needle penetration power guarantee easy sewing thick spots or cross seams over transversal seams, without skipped stitch, loose bottom thread, shorten stitch length, bobbin thread Knots and Tangles; The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies; Pneumatic climbing device for excellent stitch formation when sewing over thick spots or overlapping seams; Up to 14 mm long stitches for decorative topstitching seams; Thread puller is available for even thread tension.

Specifications:

Model NO.:  FX-204-DP
Max.Sewing Speed:  500 r.p.m
Stitch Length:  0-14 mm
Needle Bar Stroke:  56 mm
Thread Take-up lever Stroke:  96 mm
Presser Foot Lift:  22 mm
Needle Type:  DDx3 27#
Needle Gauge:  7.94-18 mm
Shuttle Hook:  KRP-204N
Sewing Post Bed Height:  140 mm
Working Area:  320x340 mm
