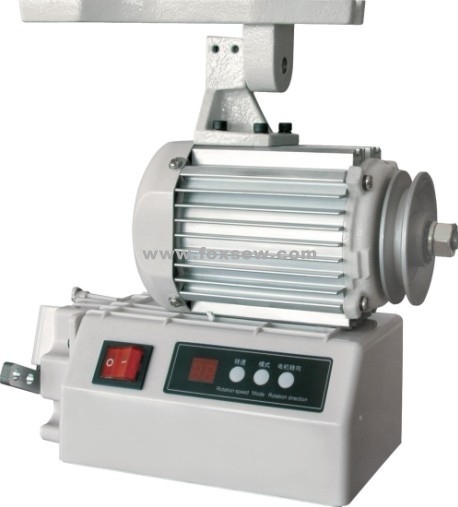

Energy-Saving Motor

Function Characteristic:

(1). Compared with clutch motor, save 60%~75% energy;

(2). Stepless speed can be controlled by pedal, maximal speed is adjustable;

(3). Low noise, low vibration low temperature rise and high efficiency, system can run reposefully and safely;

(4). Hardware and software over current protection, hardware and software over-voltage/under-voltage protection to make the controller more reliable;

(5). Use brushless motor, not have to change any parts, longer life;

(6). Switch mode power supply, with wider voltage applicable range;

(7). Precise torque control, so that it can adapt to lockstitch, overlock, interlock, etc.

(8). Precise needle position: for both up and down, the system will locate it at the exact position.

FX9 Series Motors Specifications:

Motor Type	FX9140A	FX9240A	FX9140B	FX9240B
Energy saving (Compare With Clutch Motor)	60%-75%	60%-75%	60%-75%	60%-75%
Voltage Range	220V+ 20%, 50/60HZ	220V+ 20%, 50/60HZ	110V+ 10%, 50/60HZ	110V+ 10%, 50/60HZ
Output Power	400W	400W	400W	400W
Max. Speed	3800rpm	3800rpm	3600rpm	3600rpm
Max. Torque	2 Nm	2 Nm	2 Nm	2 Nm
Speed Setting	★	★	★	★
Error Report	★	★	★	★
Direction Setting	★	★	★	★
Overload Protection	★	★	★	★
Needle Positioning	☆	★	☆	★
Pulley Size	65mm	65mm	65mm	65mm
Applicable Scope	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc
Weight	Gross weight: 6.5 kg; Net weight: 5.6 kg
Dimension	320×305×195 mm
