Computerized Direct Drive High Speed Needle Feed Lockstitch Sewing Machine

Direct-drive, High-speed, 1-needle, Needle-feed, Lockstitch Machine with Automatic Thread Trimmer

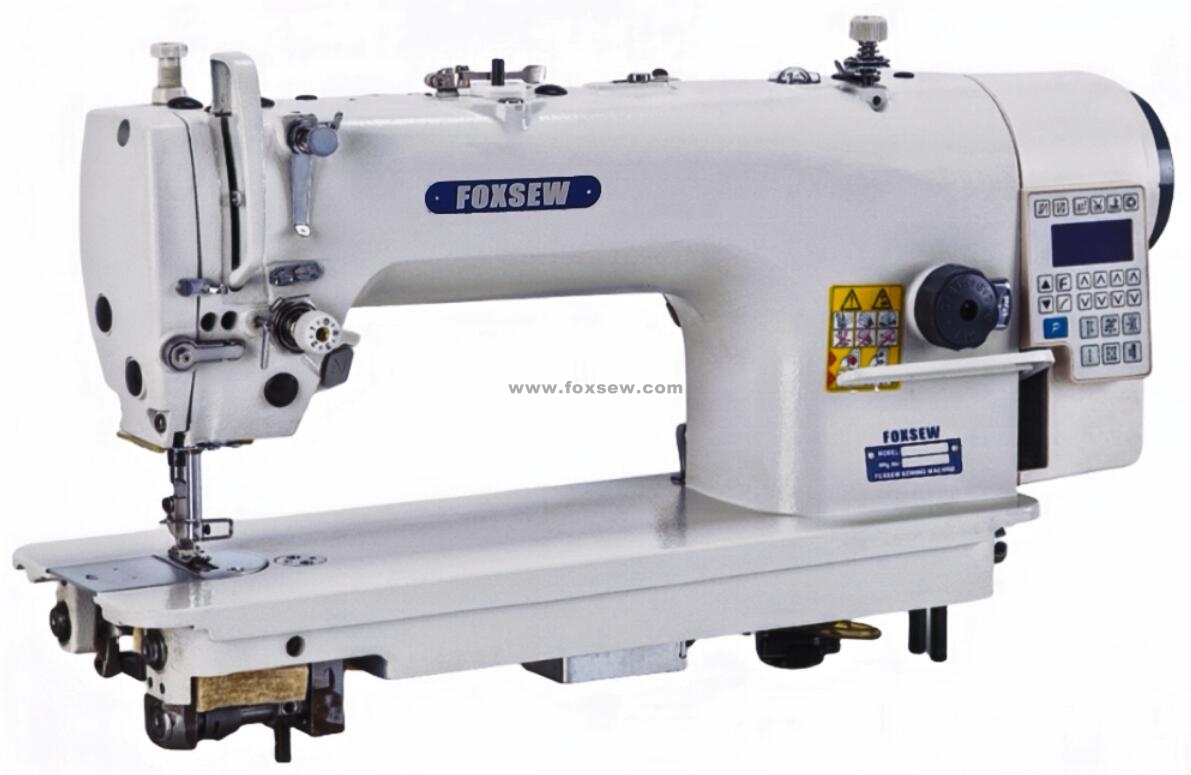

FOXSEW FX9985D Computerized Direct Drive Single Needle High Speed Needle Feed Lockstitch Sewing Machine with Autoamtic Thread Trimmer

Working Video: www.foxsew.com/company-video/direct-drive-high-speed-needle-feed-lockstitch-sewing-machine-2936.html

The needle feed mechanism, which is widely recognized as offering outstanding efficiency of feed and effectively preventing uneven material feed, responds to a wide range of applications such as the sewing of outerwear, runstitching of men's shirts, etc. and the attaching of various parts to garment bodies.

The machine is installed with a highly reliable needle feed mechanism.

The needle-feed mechanism which offers excellent efficiency of feed, The machine ensures accurate stitch pitches (stitch length) as well as preventing slippage of the upper cloth. The bottom feed's locus has been improved to match the needle feed motion, thus the machine produces beautiful seams without stitch gathering, even when it is used for sewing slippery and difficult-to-feed material or for handling a difficult process.

The needle feed mechanism is a so-called "dry type", which does not require oiling. With this mechanism, a highly reliable machine structure, free from oil leakage troubles, has been achieved. The frame, which requires only a minute quantity of lubricating oil, is structured to eliminate oil leakage.

The machine can be easily changed over from a needle feed mechanism to a bottom feed mechanism easily, through a simple adjustment and gauge replacement. It is a useful feature for those users who also want to use the machine simply as a regular bottom feed type machine in accordance with applications and processes.

The machine no longer uses an oil pan

With this oil pan-less structure, the machine helps create a clean work environment. The machine has been configured to eliminate the oil pan, and supplies a minute quantity of lubricating oil to the hook and needle bar, thereby contributing to the reation of a clean work environment. The machine saves you the time and trouble of removing the knee-lifter and cover. This means that the machine head can be tilted for cleaning and maintenance without the inconvenience of removing the knee-lifter and cover. Even if you tilt the machine head while the power is still ON, the safety switch will disable the machine. This means the machine won't start running when the head is tilted even if you press the foot pedal.

The machine is provided with various easy-to-operate functions for increased operability: Automatic Thread Trimmer, Automatic Reverse Feed Function, Attachment-mounting Seat, Energy Saving Servo Motor consists of an energy-saving mode. The power consumption during standby, when the servo motor is at rest, is reduced by approximately 20%.

Specifications:
