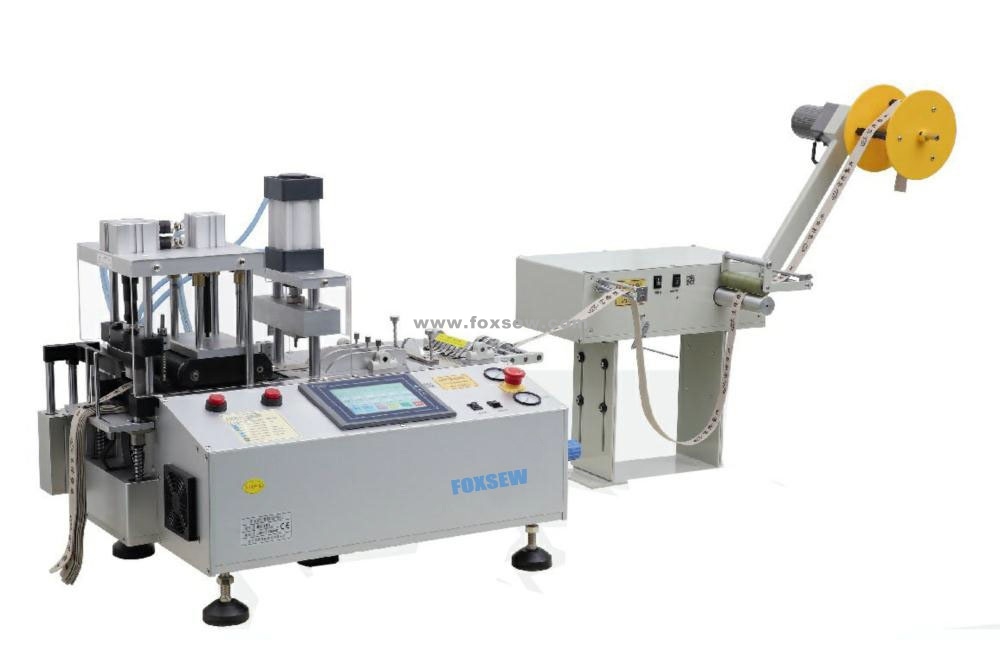

Automatic Cold Knife Tape Cutting Machine with Hole Punching and Collecting Device

Product Name: Automatic Cold Knife Tape Cutting Machine with Hole Punching and Collecting Device
Model NO.: FX-150L
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Product Details: Automatic Cold Knife Tape Cutting Machine with Hole Punching and Collecting Device

FOXSEW Automatic Tape Cutting Machine Cold Knife Multi-function with Punching Hole and Collecting Device

Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Leather Belts, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...

Working Video 1: www.foxsew.com/company-video/multi-function-tape-cutting-machine-with-punching-hole-and-collecting-device-442.html

Working Video 2: www.foxsew.com/company-video/multi-function-belts-cutting-machine-with-punching-hole-and-collecting-device-437.html

High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long, with collecting device).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.

Collecting Function: Setting the quantity, it will be collecting automatically, so that clients can be easily packed.
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. to make sure the cutting surface neatly and not frayed.
Automatic Operation: It works automatically only by setting length, quantity.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.

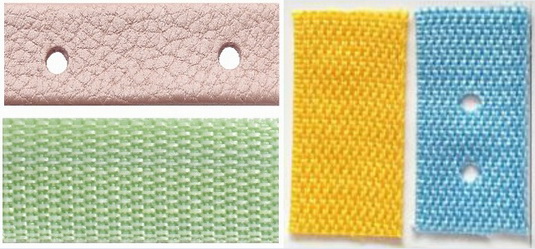

Cutting Samples:

Specifications:

Model No.:	FX-150L
Cutting Length (mm)	20-99999
Max.Cutting Width (mm)	100
Voltage	110/220V
Punching Hole Diameter	2-5 mm
Recommended Presser (Mpa)	20-50
Max.Collecting Height (mm)	40
Weight	78 Kgs
Packing Size	80x57x62cm
Power	0.25KW
100mm Cutting Speed (p/min)	100pcs
