- Product Name: Long Arm Direct Drive Top and Bottom Feed Sewing Machine with Automatic Trimmer
- Model NO.: FX-0560D
- Origin: Zhejiang, China
- Packing: Cartons
- Brand Name: FOXSEW
-
Product Details: Long Arm Direct Drive Top and Bottom Feed Sewing Machine with Automatic Trimmer

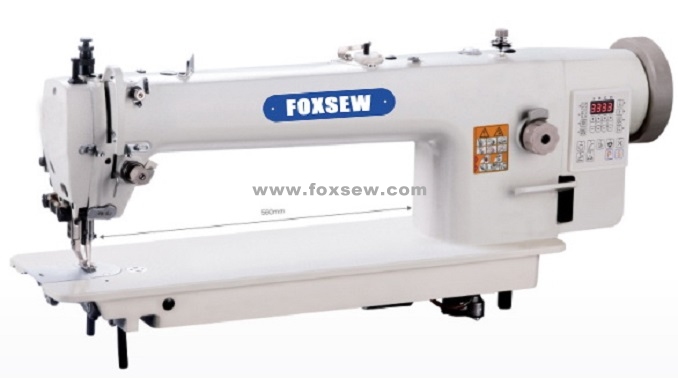

FOXSEW Long Arm Direct Drive Top and Bottom Feed Heavy Duty Lockstitch Sewing Machine with Automatic Thread Trimmer
Long Arm Single Needle Computer Controlled Direct Drive Top and Bottom Feed Heavy Duty Lockstitch Sewing Machine with Automatic Thread Trimmer, Automatic Needle Position, Automatic Presser Foot Lift, Automatic Reverse Sewing.
Operating Area: Needle Position from the Machine Body is 560mm, so this machine can sewing maximum 802 width materials.
This machine adopts link-typed feeding mechanism, durability, feed balance, expanded class sewing materials and creep in the thick of large sewing materials, make the lower feed speed to reach consensus during sewing process. Use the built-in servo motor direct drive, to achieve a quick start and brake the machine precision; while the use of advanced interated computer control technology, stable performance, strong anti-interference ability. Using large hook, reducing the number of change the bottom line, improve working efficiency, automatic lubricating device to increase machine use life. With automatic needle positioning, automatic pin number, automatic presser foot lift, automatic thread trimming, automatic reversing sewing, and other intelligent sewing patterns, it is very suitable for sewing thick materials, widely used in bags, sofas upholstery, automotive Interior trims, leather products, etc...
Specifications:
| Model NO.: | FX-0560D |
| Sewing Speed: | 2200 r.p.m |
| Stitch Length: | 8-12 mm |
| Presser Foot Lift: | 8-16 mm |
| Needle Type: | DPx17 20#-23# |
| Hook: | Large Hook |
-
